SCM125ZJ-S1/1 CONTROL

Name: SCM125ZJ-S1/1 CONTROL
SKU: SCM125ZJ-S1/1 CONTROL
Availability: InStock

SCM125ZJ-S1/1 CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

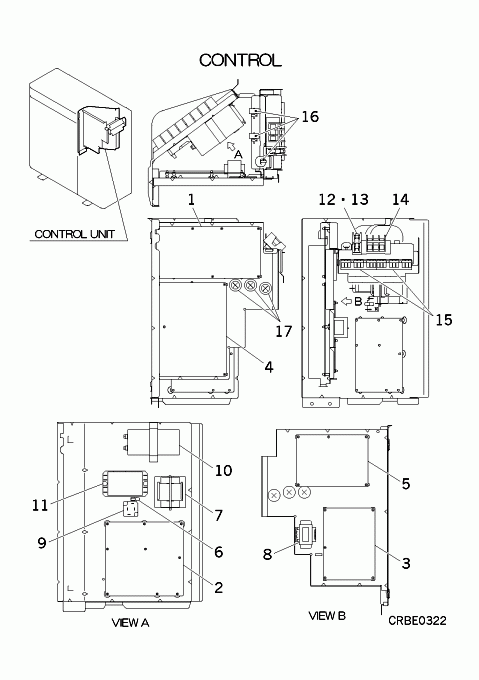

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PCA505A174L

PWB ASSY CONTROL

Notes: PWB1

[1-17] Contact

RPC501A950

CONTROL UNIT

Contact

Notes: !

[2] In Stock

PCA505A194DN

PWB ASSY (INV.)

Notes: PWB2, INVERTER PCB

[3] In Stock

PCA505A125C

PWB ASSY (N.F)

Notes: PWB3, PWB3 - NOISE FILTER Show Image

[4] Out of Stock

RPC505A950

PWB ASSY(SUB)

Substitute: RPC505A950D Notes: PWB4 Show Image

[5] In Stock

PCA505A125D

PWB ASSY

Notes: PWB5

[6] In Stock

SSA551A192L

SENSOR

Notes: THO-AF, THO-IPM THO-TR THO-AF Show Image

[7] In Stock

SSA554B092

REACTOR

Notes: L1

[8] In Stock

SSA554A509

TRANSFORMER

Notes: TR1 Show Image

[9] In Stock

SSA555A662

DIODE

Notes: DIODE STACK/DIODE MODULE/DIODE BRIDGE Show Image

[10] In Stock

SSA552F601

CAPACITOR

Notes: 450v 2700mf, COMPRESSOR CAPACITOR Show Image

[11] In Stock

SSA556J035A

IC (ACTIVE CONVERTER)

Notes: A/F MODULE (Active Filter Module) Show Image

[12] In Stock

PCA504A300

FUSE ASSY

Notes: F 30A, 30AMP FUSE WITH SOLDED WIRES (FOR FUSE HOLDER SEE SSA564B044)

[13] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[14] In Stock

SSA561B727

BLOCK,TERMINAL

Notes: TB1 Show Image

[15] In Stock

SSA561B699

BLOCK TERMI

Notes: TB2,3,4 TB5,6,7

[16] In Stock

SSA554D183

KILLER,NOISE

Show Image

[17] Contact

S751W20X

GROMMET

Contact

Notes: D25

[18] Contact

RWC011F017P

LABEL,MODEL NAME

Contact

Notes: !

SKU: SCM125ZJ-S1/1 CONTROL Category: Uncategorised
