SCM100ZS-W CONTROL AND PARTS SET

Name: SCM100ZS-W CONTROL AND PARTS SET
SKU: SCM100ZS-W CONTROL AND PARTS SET
Availability: InStock

SCM100ZS-W CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

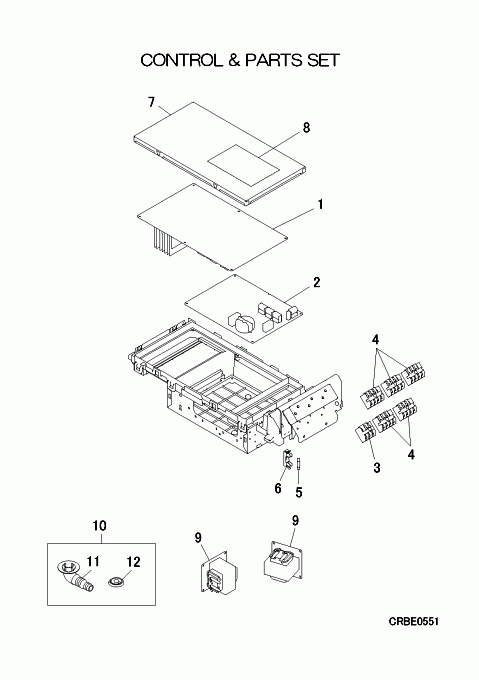

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

RCR505A110CL

PWB ASSY(MAIN)

Notes: PWB1

[1-8] Contact

RPC501A951

CONTROL UNIT

Contact

Notes: !

[2] In Stock

RCT505A006BD

PWB ASSY(SUB)

Notes: PWB2

[3] In Stock

SSA561B665

BLOCK TERMI

Notes: TB1, T1 Show Image

[4] In Stock

SSA561B702B

BLOCK,TERMINAL

Notes: TB2,3,4,5,6, T2 Show Image

[5] In Stock

SSA564A136A

FUSE(CURRENT)

Notes: F4 20A, F 20A‚ - 20 amp fuse Show Image

[6] In Stock

SSA564B088

HOLDER,FUSE

Show Image

[7-8] Contact

RPC142A203L

LID ASSY,CONTROL

Contact

[8] Contact

RPC011G200M

LABEL,WIRING

Contact

Notes: !

[9] Out of Stock

SSA554B128

REACTOR

Notes: L, Sold Individually

[10-12] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[11] In Stock

RPC008A601

DRAIN KIT

Notes: 1x ELBOW, 2x GROMMETS PER DRAIN KIT

[12] In Stock

SSA947A089

GROMMET

Notes: SSA422A024 ELBOW Show Image

[13] Out of Stock

RWC011F041P

LABEL,MODEL NAME

Notes: !

SKU: SCM100ZS-W CONTROL AND PARTS SET Category: Uncategorised
