PFD1803-E-D CONTROL

Name: PFD1803-E-D CONTROL
SKU: PFD1803-E-D CONTROL
Availability: InStock

PFD1803-E-D CONTROL

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

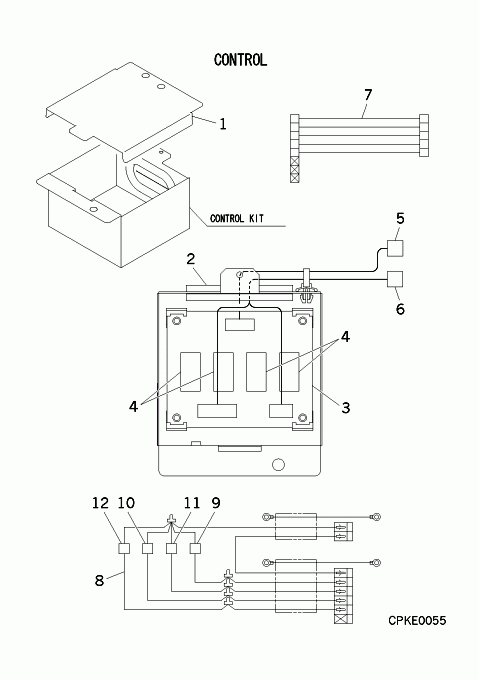

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCB142A518

COVER ASSY

Contact

Notes: !

[1-6] In Stock

PCB006A122

CONTROL, KIT (RELAY)

Show Image

[2] In Stock

SSA947B120

GROMMET

Notes: !, LENGTH 5.5CM Show Image

[3-4] Contact

PCB505A167

PWB ASSY

Contact

Notes: !

[4] Contact

SSA521A420

RELAY

Contact

Notes: !52X1,2,3,4

[5] Contact

PCB504A339

WIRING ASSY

Contact

Notes: !

[6] Contact

PCB504A340

WIRING ASSY

Contact

Notes: !

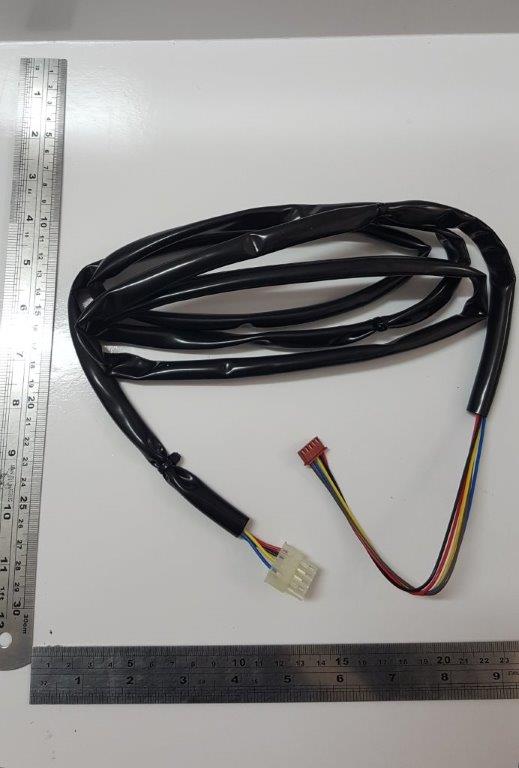

[7] In Stock

PCB504A287

WIRING ASSY

Notes: ! Show Image

[8-12] Contact

PCB504A347AA

WIRING ASSY

Contact

[9] In Stock

SSA382F034B

COIL, SOLENO

Notes: !20S, 20S Show Image

[10] In Stock

SSA382F150B

COIL, SOLENOID

Notes: !SVG, LENGTH 70CM Show Image

[11] In Stock

SSA382F438D

COIL SOLENIOD

Notes: !SVH, SVH Show Image

[12] In Stock

SSA382F133F

COIL SOLENOID

Notes: !SVE Show Image

SKU: PFD1803-E-D CONTROL Category: Uncategorised
