GHCP560HMTE4 PANEL ASSY

Name: GHCP560HMTE4 PANEL ASSY
SKU: GHCP560HMTE4 PANEL ASSY
Availability: InStock

GHCP560HMTE4 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

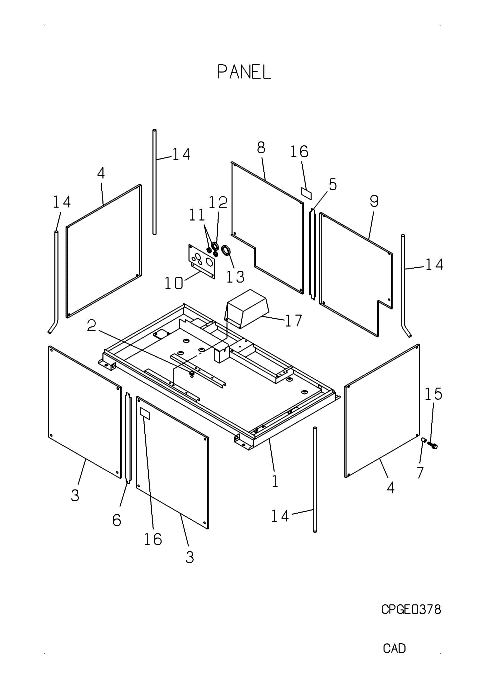

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PCL111A029

BASE ASSY

Contact

Notes: OUT OF PRODUCTION

[2] Contact

S751W16

GROMMET

Contact

Notes: OUT OF PRODUCTION, D20

[3] Contact

PCL122A005

FRANT PANEL

Contact

Notes: OUT OF PRODUCTION

[4] Contact

PCL123A016

SIDE PANAL

Contact

Notes: OUT OF PRODUCTION

[5] Contact

PCL101A010

FRAME(MIDDLE)

Contact

Notes: OUT OF PRODUCTION, REAR, REAR

[6] Contact

PCL101A010A

FRAME(MIDDLE)

Contact

Notes: OUT OF PRODUCTION, FRONT, FRONT

[7] Contact

SSA941B014

CUSHION RUB

Contact

Notes: OUT OF PRODUCTION

[8] Contact

PCL125A015

REAR PANAL

Contact

Notes: OUT OF PRODUCTION

[9] Contact

PCL125A016

REAR PANAL

Contact

Notes: OUT OF PRODUCTION

[10-13] Contact

PCL142A095

COVER

Contact

Notes: OUT OF PRODUCTION

[11] In Stock

S751W30

GROMMET

Notes: OUT OF PRODUCTION, D35 Show Image

[12] Contact

SSA947A002C

GROMMET

Contact

Substitute: RR82901A Notes: OUT OF PRODUCTION, D56

[13] Contact

SSA947A002J

GROMMET ‚¸

Contact

Substitute: RR82901C Notes: OUT OF PRODUCTION, D71

[14] Contact

PCA423B001B

HOSE,DRAIN

Contact

Notes: OUT OF PRODUCTION

[15] Contact

SSA911D224

BOLT 8X40SU

Contact

Notes: OUT OF PRODUCTION, M8X40

[16] Contact

PSA011H010H

LABEL,NOTIC

Contact

Notes: OUT OF PRODUCTION

[17] Contact

SSA554A397A

TRANSFORMER

Contact

Notes: OUT OF PRODUCTION
