GHCP560HMTE4 ENGINE AND COMP. ASSY

Name: GHCP560HMTE4 ENGINE AND COMP. ASSY
SKU: GHCP560HMTE4 ENGINE AND COMP. ASSY
Availability: InStock

GHCP560HMTE4 ENGINE AND COMP. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

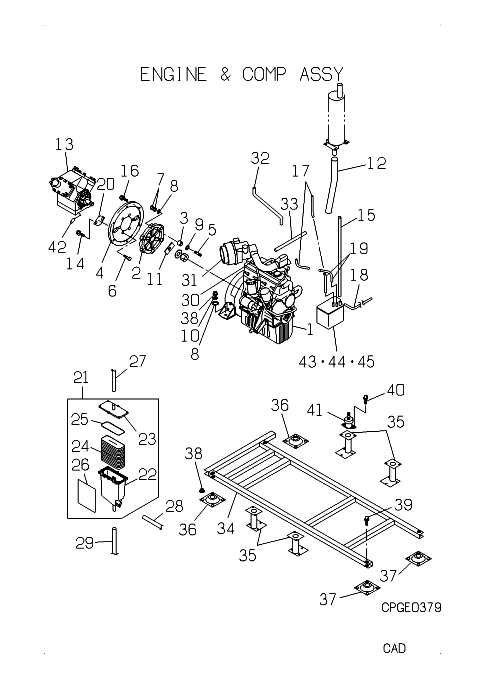

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PCL205A035C

ENGINE ASSY

Contact

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[2] Out of Stock

BAA272A007

COUPLING ASSY

Notes: OUT OF PRODUCTION

[3] Contact

SSA941B013

CUSHION,RUBBER

Contact

Notes: OUT OF PRODUCTION

[4] Contact

PCL214B003

HOUSING

Contact

Notes: OUT OF PRODUCTION

[5] Contact

SSA911K017

BOLT,STUD

Contact

Notes: OUT OF PRODUCTION

[6] Contact

SSA911C046AH

BOLT & WASHER

Contact

Notes: OUT OF PRODUCTION, 1pc ONLY

[7] Contact

N002B10

NUT

Contact

Notes: OUT OF PRODUCTION, 1pc

[8] In Stock

RSA008A005

FAN MOUNTING KIT

Notes: OUT OF PRODUCTION, aka FAN HARMONICS KIT / FAN STABILISER. Includes Nut, Washer & Packing. Show Image

[9] Contact

W200H14

WASHER

Contact

Notes: OUT OF PRODUCTION, 1pc ONLY

[10] In Stock

W220R10

WASHER

Notes: OUT OF PRODUCTION, 1pc ONLY Show Image

[11] Contact

PCL915H001A

WASHER

Contact

Notes: OUT OF PRODUCTION, 1pc ONLY

[12] Out of Stock

PCL623C055A

HOSE EXHAU

Notes: OUT OF PRODUCTION

[14] In Stock

SSA911D207BA

BOLT&WASHER

Notes: OUT OF PRODUCTION, M6X16

[15] Out of Stock

PCL623C029

DRAN HOSE

Notes: OUT OF PRODUCTION

[16] Contact

B070B10X035

BOLT & WASHER

Contact

Notes: OUT OF PRODUCTION, M10X35, 1pc ONLY, M10X35

[17] Contact

PCL623C057

HOSE DRAN

Contact

Notes: OUT OF PRODUCTION

[18] Contact

PCL623C032

DRAIN HOSE

Contact

Notes: OUT OF PRODUCTION

[19] Contact

PCL623C061

HOSE DRAIN

Contact

Notes: OUT OF PRODUCTION

[20] Contact

BAA132A007

COVER

Contact

Notes: OUT OF PRODUCTION

[21-26] Out of Stock

PCL142A120

FILTER ASSY

Notes: OUT OF PRODUCTION

[22] Contact

PCL142A121

CASE

Contact

Notes: OUT OF PRODUCTION

[23] Contact

PCL142A122

CASE

Contact

Notes: OUT OF PRODUCTION

[24] In Stock

PCL437A013

FILTER ELEM

Notes: OUT OF PRODUCTION, FOR BLOW-BY GAS FILTER Show Image

[25] In Stock

PCL932C015

PACKING

Notes: OUT OF PRODUCTION, FOR BLOW-BY GAS FILTER Show Image

[26] Out of Stock

PCL541B015

HEATER

Notes: OUT OF PRODUCTION

[27] Out of Stock

PCL623C048

HOSE I B B

Notes: OUT OF PRODUCTION

[28] Out of Stock

PCL623C049

HOSE I B B

Notes: OUT OF PRODUCTION

[29] Out of Stock

PCL623C081

HOSE 3 BBF

Notes: OUT OF PRODUCTION

[30] Out of Stock

PCL423F009

HOSE HOSE

Notes: OUT OF PRODUCTION

[31] Out of Stock

PCL437A007A

AIR FILTER

Notes: OUT OF PRODUCTION

[32] Contact

PCL623C002A

HOSE DRAAIN

Contact

Substitute: PCL623C057B Notes: OUT OF PRODUCTION

[33] Out of Stock

PCL423C013C

WATER HOSE

Notes: OUT OF PRODUCTION

[34] Contact

PCL111A028A

BASE(ENGINE)

Contact

Notes: OUT OF PRODUCTION

[35] Contact

PCL116A205

BRACKET(ENGINE)

Contact

Notes: OUT OF PRODUCTION

[36] Contact

SSA941A053

CUSHION,RUBBER(CUP

Contact

Notes: OUT OF PRODUCTION

[37] Contact

SSA941A054

CUSHION,RUBBER(CUP

Contact

Notes: OUT OF PRODUCTION

[38] Contact

SSA914B029

NUT,TH

Contact

Notes: OUT OF PRODUCTION, 1pc

[39] Contact

SSA911C046AD

BOLT & WASHER

Contact

Notes: OUT OF PRODUCTION, M10X30, 1pc ONLY, M10X30

[40] Contact

B070B10X020

BOLT & WASHER

Contact

Notes: OUT OF PRODUCTION, M10X20, 1pc ONLY, M10X20

[41] Contact

SSA941D006

SPRING,COIL

Contact

Notes: OUT OF PRODUCTION

[42] Out of Stock

PCL541B001

HEATER CRNK

Notes: OUT OF PRODUCTION

[43-45] Contact

PCL623A029B

FILTER DRAI

Contact

Notes: OUT OF PRODUCTION

[44] In Stock

PCL437A006B

FILTER ELEM

Notes: OUT OF PRODUCTION, FOR FILTER,DRAIN

[45] Contact

PCL154D002B

SHEET JOINT

Contact

Notes: OUT OF PRODUCTION

SKU: GHCP560HMTE4 ENGINE AND COMP. ASSY Category: Uncategorised
