FDUT56KXE6F-E/1 CONTROL AND PARTS SET

Name: FDUT56KXE6F-E/1 CONTROL AND PARTS SET
SKU: FDUT56KXE6F-E/1 CONTROL AND PARTS SET
Availability: InStock

FDUT56KXE6F-E/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

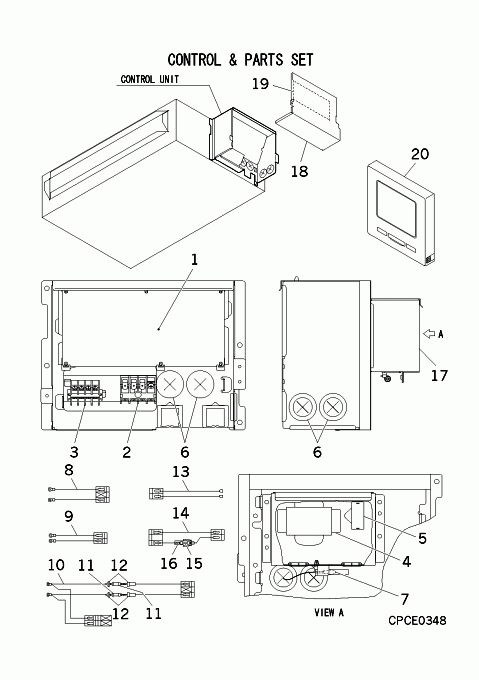

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A299LP

PWB ASSY

Notes: Indoor PCB

[1-17] Contact

PJH501A001AL

CONTROL UNIT

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] Contact

SSA552A866H

CAPACITOR,RUNNING

Contact

Notes: CFI 3MF 450VAC

[6] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[7] In Stock

PSA551A001CH

SENSOR ASSY

Notes: THI-A, THI-A - AIR TEMP SENSOR Show Image

[8] Contact

PJF504A006L

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[9] Contact

PJF504A010K

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[10-12] Contact

PFA504A618L

WIRING(TB,POWER)

Contact

Notes: TB1 1,TB1 2- CNW0 PWB,CNU

[11] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[12] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[13] Contact

PFA504A616C

HARNESS(CF)

Contact

Notes: CNFI- CNFI,CFI

[14-16] Contact

PJB504A238A

WIRING(DM)

Contact

Notes: CNR PWB- CNR2 DM

[15] In Stock

SSA564A139

FUSE(CURRENT)

Notes: 0.16A, F 0.16A Show Image

[16] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[17] Contact

PJH142A007

LID,CONTROL(SUB)

Contact

Substitute: PJH142A007A

[18] In Stock

PJH142A020

LID ASSY CONT.(MAIN)

[19] Contact

PJH011G001

LABEL,WIRING

Contact

[20] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[21] Contact

PJH011F003L

LABEL,MODEL NAME

Contact
