FDUT22KXE6F-E/F HEAT EXCH. AND FAN

Name: FDUT22KXE6F-E/F HEAT EXCH. AND FAN
SKU: FDUT22KXE6F-E/F HEAT EXCH. AND FAN
Availability: InStock

FDUT22KXE6F-E/F HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

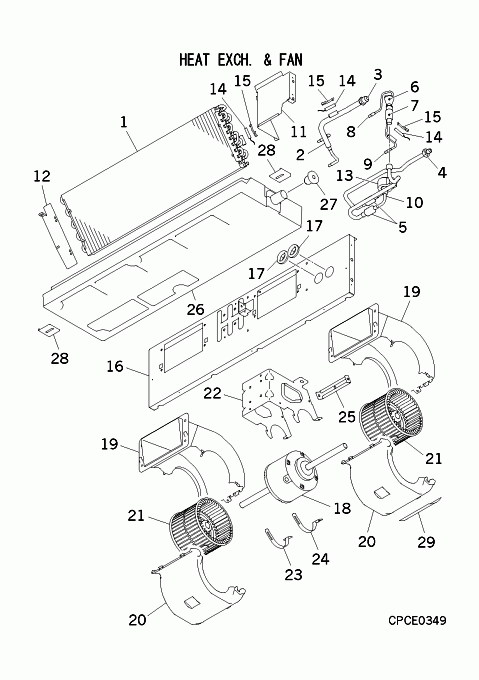

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJH311A002A

HEAT EXCH(AIR)

Contact

Notes: !

[1-15] Out of Stock

PJH301A002A

HEAT EXCH ASSY(AIR)

[2-3] Contact

PJH315D003

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA323F012A

UNION

Contact

[4] Contact

SSA323F092

UNION,SOLDER

Contact

[5] In Stock

SSA357A051B

STRAINER

Show Image

[6] Contact

SSA315A306Z

DISTRIBUTOR

Contact

Notes: !

[6-9] Contact

PJH315A002A

DISTRIBUTOR ASSY

Contact

[7] In Stock

SSA357A051

STRAINER

Show Image

[8] Contact

PJH315B002

CAPILLARY

Contact

Notes: !D3.0XD4.0 L120

[9] Contact

PJH315B002A

CAPILLARY

Contact

Notes: !D2.4XD4.0 L220

[10] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[11] Contact

PJH141A003

PLATE,BAFFLE(R)

Contact

[12] Contact

PJH141A004

PLATE,BAFFLE(L)

Contact

[13] In Stock

SSA382F228AH

COIL, SOLENOID

Notes: FOR SM

[14] In Stock

PJF551A002L

SENSOR ASSY

Notes: THI-R1,2,3, LENGTH 74.5CM Show Image

[15] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[16-17] Contact

PJH141A001

PLATE ASSY,BAFFLE

Contact

Substitute: PJH141A001B

[17] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[18] In Stock

SSA511T265

MOTOR

[19] In Stock

PJH433B001

CASING(U)

[20] In Stock

PJH433B003

CASING ASSY(L)

[21] In Stock

SSA431D095A

FAN

[22] In Stock

PJH116A003

BRACKET MOTOR

[23] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[24] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[25] Contact

PJG119A002B

PLATE

Contact

[26-27] In Stock

PJH454A001

PAN ASSY,DRAIN

[27] In Stock

SSA326A049

PLUG

Show Image

[28] Contact

PJH116A013

BRACKET ASSY(PAN)

Contact

[29] Contact

PSA011H046

LABEL,NOTICE

Contact
