FDUT15KXE6F-E/1 HEAT EXCH. AND FAN

Name: FDUT15KXE6F-E/1 HEAT EXCH. AND FAN
SKU: FDUT15KXE6F-E/1 HEAT EXCH. AND FAN
Availability: InStock

FDUT15KXE6F-E/1 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

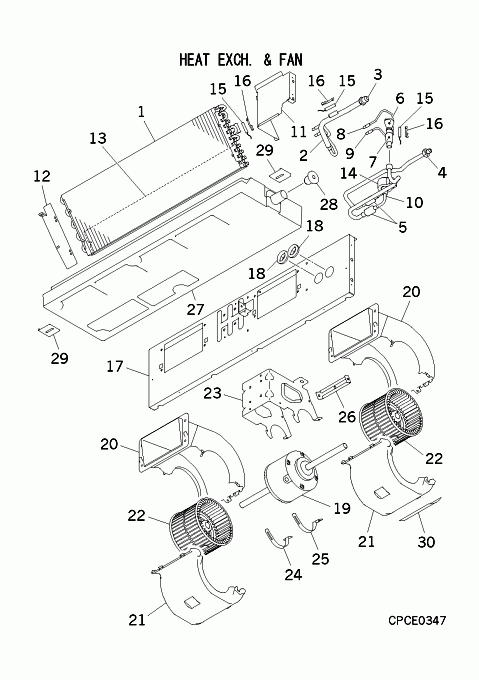

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJH311A003

Contact

[1-16] Contact

PJH301A003

Contact

[2-3] Contact

PJH315D007

Contact

[3] Contact

SSA323F012A

UNION

Contact

[4] Contact

SSA323F075

UNION

Contact

[5] In Stock

SSA357A051B

STRAINER

Show Image

[6] Contact

SSA315A306

DISTRIBUTOR

Contact

[6-9] Contact

PJH315A005

Contact

[7] In Stock

SSA357A051

STRAINER

Show Image

[8] Contact

PJH315B005

Contact

Notes: !D2.0XD4.0 L120

[9] Contact

PJH315B005A

Contact

Notes: !D2.8XD4.0 L160

[10] Contact

SSA387F064B

Contact

Notes: SM

[11] Contact

PJH141A003

PLATE,BAFFLE(R)

Contact

[12] Contact

PJH141A004

PLATE,BAFFLE(L)

Contact

[13] Contact

PJH119A004

Contact

[14] In Stock

SSA382F228AH

COIL, SOLENOID

Notes: FOR SM

[15] In Stock

PJF551A002L

SENSOR ASSY

Notes: THI-R1,2,3, LENGTH 74.5CM Show Image

[16] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[17-18] Contact

PJH141A001

PLATE ASSY,BAFFLE

Contact

Substitute: PJH141A001B

[18] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[19] In Stock

SSA511T265

MOTOR

[20] In Stock

PJH433B001

CASING(U)

[21] In Stock

PJH433B003

CASING ASSY(L)

[22] In Stock

SSA431D095A

FAN

[23] In Stock

PJH116A003

BRACKET MOTOR

[24] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[25] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[26] Contact

PJG119A002B

PLATE

Contact

[27-28] In Stock

PJH454A001

PAN ASSY,DRAIN

[28] In Stock

SSA326A049

PLUG

Show Image

[29] Contact

PJH116A013

BRACKET ASSY(PAN)

Contact

[30] Contact

PSA011H032

LABEL,NOTICE

Contact

SKU: FDUT15KXE6F-E/1 HEAT EXCH. AND FAN Category: Uncategorised
