FDUSA602R-C CONTROL AND PARTS SET

Name: FDUSA602R-C CONTROL AND PARTS SET
SKU: FDUSA602R-C CONTROL AND PARTS SET
Availability: InStock

FDUSA602R-C CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

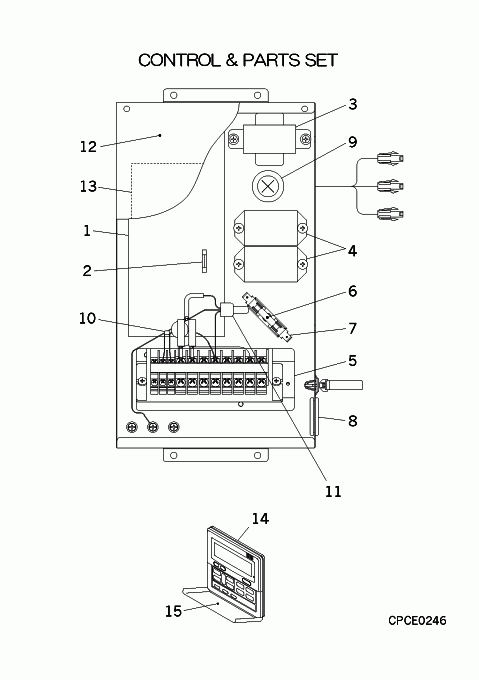

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-11] Contact

PJR501A304

CONTROL UNIT

Contact

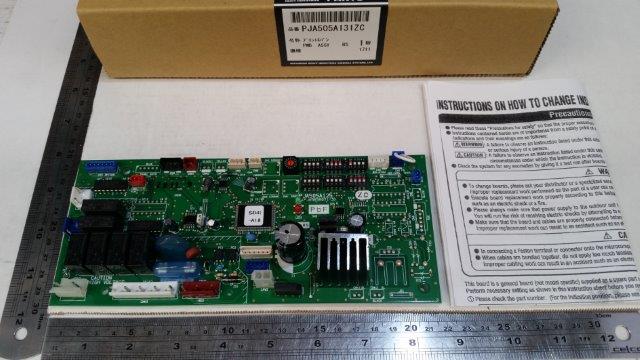

[1-2] Out of Stock

PJA505A131ZC

PWB ASSY

Substitute: OUT OF PRODUCTION Show Image

[2] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

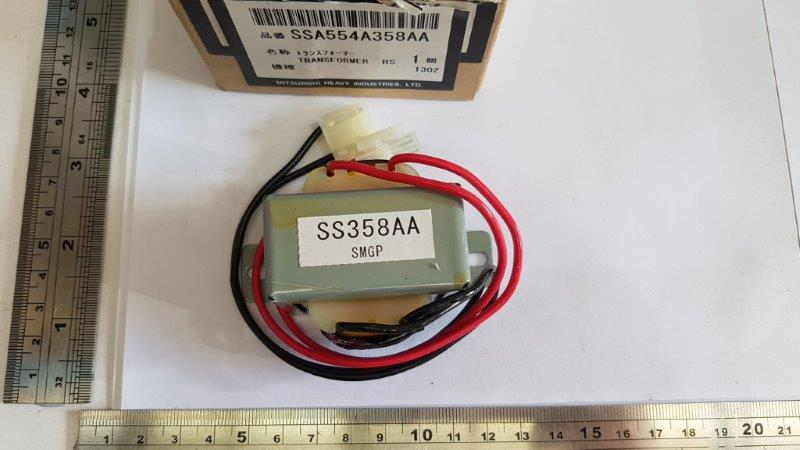

[3] In Stock

SSA554A358AA

TRANSFORMER

Notes: TR Show Image

[4] Contact

SSA521F051

RELAY

Contact

Notes: 52F

[5] Contact

SSA561B716KD

BLOCK,TERMINAL

Contact

Notes: TB

[6] Contact

SSA564A117A

FUSE(CURRENT)

Contact

Notes: F 10A

[7] In Stock

SSA564B044

HOLDER, FUSE

Show Image

[8] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[9] Contact

S751W20X

GROMMET

Contact

Notes: D25

[10] Contact

PJA552F004

CAPACITOR A

Contact

[11] Contact

PJR504A308

CAPACITOR ASSY

Contact

[12-13] Contact

PJR142A302

LID ASSY,CONTROL B

Contact

[13] Contact

PJR011G303

LABEL,WIRING

Contact

[14-15] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[15] Contact

PJA129A708

COVER Z

Contact

[16] Contact

PJR011F306B

Contact
