Parts List
Key:
Instock.
Nilstock.
Contact MRE.

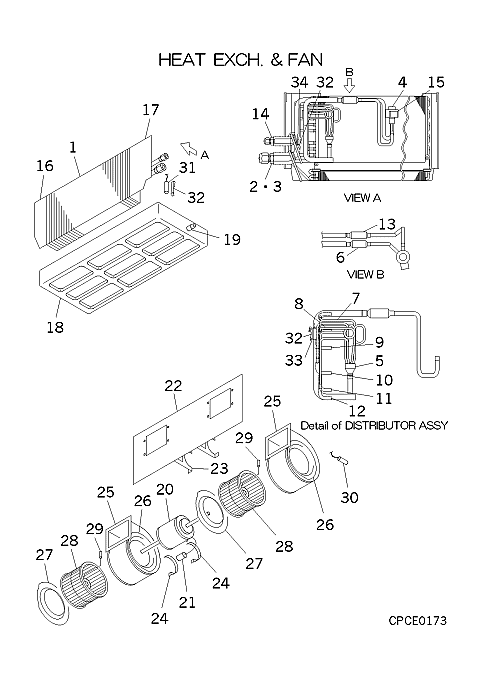

Check the parts position number [ ] matching with the drawing. Login to view prices.
[1]
Contact
PJD311A025A
HEAT EXCH(AIR)
Contact
[1-17]
In Stock
PJD301A039
HEAT EXCH A
[2-3]
Contact
PJD315D060B
HEADER ASSY,GAS
Contact
[3]
Contact
SSA323F012G
UNION,SOLDER
Contact
[4]
In Stock
SSA387F036A
VALVE,BODY
[5]
Contact
SSA315A252D
DISTRIBUTOR
Contact
[5-12]
Contact
PJD315A065
DISTRIBUTOR
Contact
[6]
In Stock
SSA357A059T
STRAINER
[7]
Contact
PJD315B338
CAPILLARY(1)
Contact
[8]
Contact
PJD315B339
CAPILLARY(2)
Contact
[9]
Contact
PJD315B340
CAPILLARY(3)
Contact
[10]
Contact
PJD315B341
CAPILLARY(4)
Contact
[11]
Contact
PJD315B342
CAPILLARY(5)
Contact
[12]
Contact
PJD315B343
CAPILLARY(6)
Contact
[13]
In Stock
SSA357A059B
STRAINER
[14]
Contact
SSA323F075
UNION
Contact
[15]
In Stock
SSA382F210T
COIL,SOLENOID
[16]
Contact
PJD141A029D
PLATE ASSY,BAFFLE
Contact
[17]
Contact
PJD141A030D
PLATE ASSY,BAFFLE
Contact
[18-19]
In Stock
PJD454A010
PAN DRAIN
[19]
Contact
SSA422C058
SOCKET
Contact
[20]
In Stock
PJD511T014
MOTOR AC
[21]
In Stock

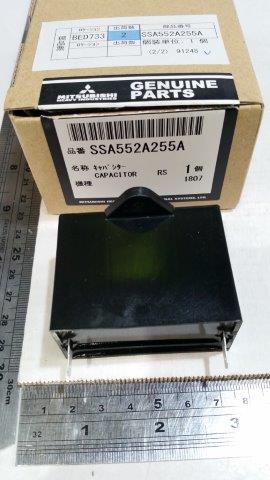

SSA552A255A
CAPACITOR
[22]
In Stock
PJD116A083
BRACKET FAN
[23]
In Stock
PJD116A084
BRAKET FAN
[24]
In Stock
PJY116A517
BRACKET FAN
[25-27]
In Stock
PJD433B003
CASING
[26]
Contact
PJD433A005
SHROUD,SUCTION
Contact
[27]
Contact
PJD433A005A
SHROUD,SUCTION
Contact
[28-29]
In Stock
SSA431D073
IMPELLER
[29]
In Stock
H721B08X012
SCREW,SCH-CP
[30]
In Stock
PJA551A010N
SENSOR
Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image
[31]
In Stock
PJA551A005C
SENSOR
[32]
In Stock
RKJ941F001
SPRING LEAF
[33]
In Stock
PJA551A005BB
SENSOR
Notes: THI-R2, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD Show Image
[34]
In Stock
PJA551A005BC
SENSOR
Notes: THI-R3, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD/ LENGTH 137.5CM Show Image
