FDURA201R HEAT EXCH. AND FAN

Name: FDURA201R HEAT EXCH. AND FAN
SKU: FDURA201R HEAT EXCH. AND FAN
Availability: InStock

FDURA201R HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

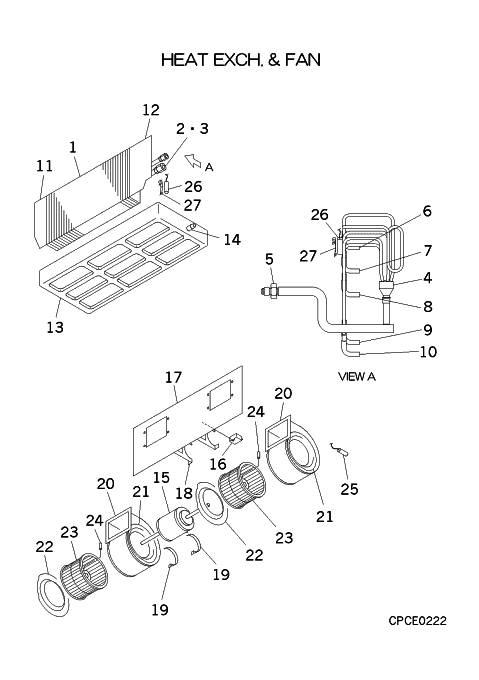

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJD311A025

HEAT EXCH(AIR)

Contact

[1-12] In Stock

PJD301A037

HEAT EXCH A

[2-3] Contact

PJD315D059

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012G

UNION,SOLDER

Contact

Notes: GAS

[4] Contact

SSA315A252

DISTRIBUTOR

Contact

[4-10] Contact

PJD315A064

DISTRIBUTOR

Contact

[5] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[6] Contact

PJD315B344

CAPILLARY(1)

Contact

Notes: !D2.4XD4.0 L220

[7] Contact

PJD315B345

CAPILLARY(2)

Contact

Notes: !D2.4XD4.0 L380

[8] Contact

PJD315B346

CAPILLARY(3)

Contact

Notes: !D2.4XD4.0 L220

[9] Contact

PJD315B347

CAPILLARY(4)

Contact

Notes: !D3.0XD4.0 L240

[10] Contact

PJD315B348

CAPILLARY(5)

Contact

Notes: !D2.4XD4.0 L280

[11] Contact

PJD141A029D

PLATE ASSY,BAFFLE

Contact

Notes: LEFT

[12] Contact

PJD141A030D

PLATE ASSY,BAFFLE

Contact

Notes: RIGHT

[13-14] In Stock

PJD454A010

PAN DRAIN

[14] Contact

SSA422C058

SOCKET

Contact

[15] In Stock

SSY511T003

MOTOR,AC

[16] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFO1,2

[17] In Stock

PJD116A083

BRACKET FAN

[18] In Stock

PJD116A084

BRAKET FAN

Show Image

[19] In Stock

PJY116A517

BRACKET FAN

Show Image

[20-22] In Stock

PJD433B003

CASING

[21] Contact

PJD433A005

SHROUD,SUCTION

Contact

[22] Contact

PJD433A005A

SHROUD,SUCTION

Contact

[23-24] In Stock

SSA431D073

IMPELLER

Show Image

[24] In Stock

H721B08X012

SCREW,SCH-CP

Notes: 1pc ONLY

[25] In Stock

PJA551A010N

SENSOR

Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[26] In Stock

PJA551A005C

SENSOR

Notes: THI-R Show Image

[27] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image
