FDURA140KXE4R HEAT EXCH. AND FAN

Name: FDURA140KXE4R HEAT EXCH. AND FAN
SKU: FDURA140KXE4R HEAT EXCH. AND FAN
Availability: InStock

FDURA140KXE4R HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

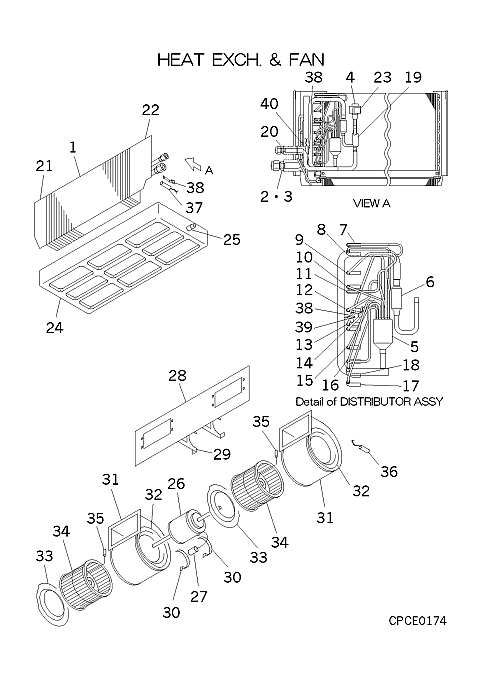

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJD311A026

HEAT EXCH(AIR)

Contact

[1-23] Contact

PJD301A044

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJD315D061A

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA387F045

VALVE EXPAN

Notes: SM Show Image

[5] Contact

PJA315A703F

DISTRI Z

Contact

[5-18] Contact

PJD315A068

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] Contact

PJD315B326

CAPILLARY(1)

Contact

Notes: !D2.2XD3.2 L300

[8] Contact

PJD315B327

CAPILLARY(2)

Contact

Notes: !D2.0XD3.2 L310

[9] Contact

PJD315B328

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L270

[10] Contact

PJD315B329

CAPILLARY(4)

Contact

Notes: !D2.2XD3.2 L160

[11] Contact

PJD315B330

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L230

[12] Contact

PJD315B331

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L190

[13] Contact

PJD315B332

CAPILLARY(7)

Contact

Notes: !D2.4XD4.0 L300

[14] Contact

PJD315B333

CAPILLARY(8)

Contact

Notes: !D2.4XD4.0 L160, !D2.6XD4.0 L160

[15] Contact

PJD315B334

CAPILLARY(9)

Contact

Notes: !D2.2XD3.2 L180

[16] Contact

PJD315B335

CAPILLARY(10)

Contact

Notes: !D2.2XD3.2 L210

[17] Contact

PJD315B336

CAPILLARY(11)

Contact

Notes: !D2.2XD3.2 L220

[18] Contact

PJD315B337

CAPILLARY(12)

Contact

Notes: !D3.0XD4.0 L230

[19] In Stock

SSA357A059B

STRAINER

[20] Contact

SSA323F012A

UNION

Contact

[21] Contact

PJD141A029F

PLATE ASSY,BAFFLE

Contact

Notes: LEFT

[22] Contact

PJD141A030F

PLATE ASSY,BAFFLE

Contact

Notes: RIGHT

[23] In Stock

SSA382F229C

COIL, SOLENOID

Notes: FOR SM, LENGTH 77.5CM - EEV COIL Show Image

[24-25] Out of Stock

PJD454A010A

PAN, DRAIN

[25] Contact

SSA422C058

SOCKET

Contact

[26] In Stock

SSY511T001

MOTOR AC

[27] In Stock

SSA552A260F

CAPACITOR

Notes: CFI 14MF 450VAC Show Image

[28] In Stock

PJD116A083A

BRACKET FAN

[29] In Stock

PJD116A084A

BRACKET MOTOR

[30] In Stock

PJY116A517

BRACKET FAN

Show Image

[31-33] In Stock

PJD433B004

CASING

Notes: COWLING

[32] In Stock

PJD433B004

CASING

Notes: COWLING

[33] In Stock

PJD433B004

CASING

Notes: COWLING

[34-35] In Stock

SSA431D074

IMPELLER

[35] In Stock

H721B08X012

SCREW,SCH-CP

Notes: 1pc ONLY

[36] In Stock

PJA551A010N

SENSOR

Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[37] In Stock

PJA551A005AF

SENSOR

Notes: THI-R, REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[38] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[39] In Stock

PJA551A005BB

SENSOR

Notes: THI-R2, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD Show Image

[40] In Stock

PJA551A005BC

SENSOR

Notes: THI-R3, KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD/ LENGTH 137.5CM Show Image

SKU: FDURA140KXE4R HEAT EXCH. AND FAN Category: Uncategorised
