FDUR408-A HEAT EXCH. AND FAN

Name: FDUR408-A HEAT EXCH. AND FAN
SKU: FDUR408-A HEAT EXCH. AND FAN
Availability: InStock

FDUR408-A HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

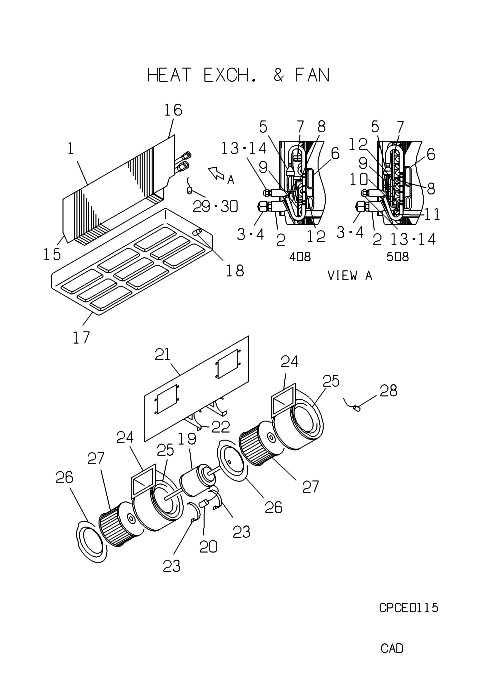

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJD311A013

HEAT EXCH

Contact

[1-16] Out of Stock

PJD301A023

HEAT EXCH

Substitute: OUT OF PRODUCTION Notes: OUT OF PRODUCTION

[2-4] Contact

PJD315D034

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F075D

UNION

Contact

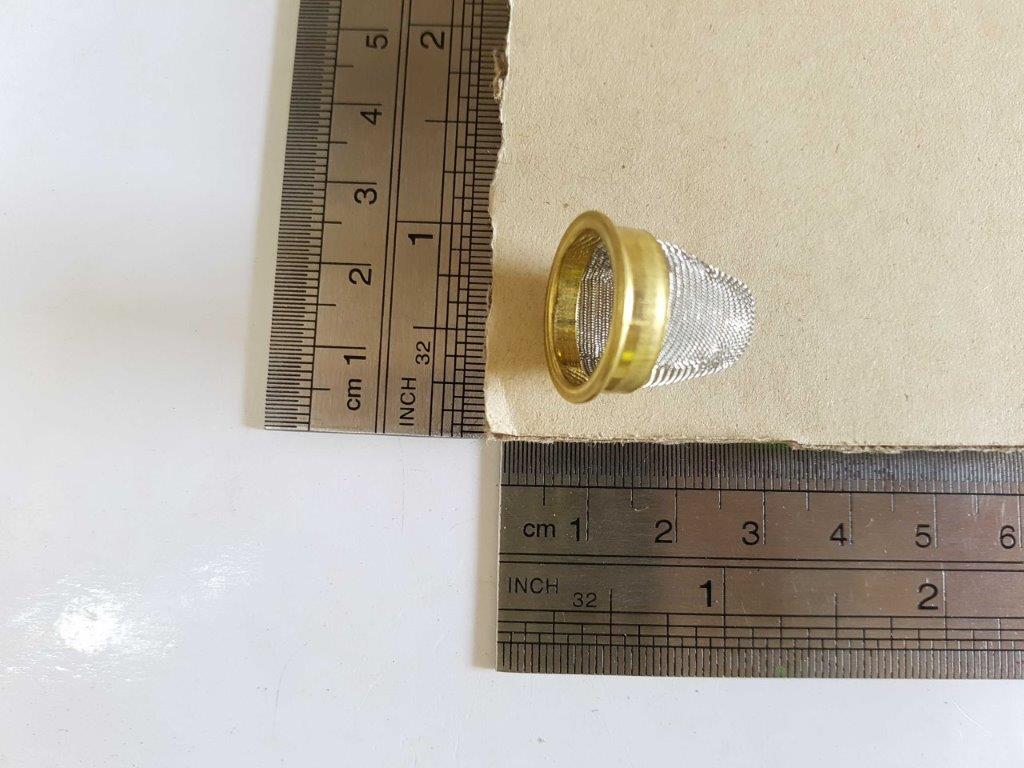

[4] In Stock

SSA357H034B

STRAINER

Notes: LENGTH 1.5CM Show Image

[5] Contact

SSA315A294

DISTRIBUTOR

Contact

[5-14] Contact

PJD315A044

DISTRIBUTOR

Contact

[6] Contact

PJD315B216

CAPILLARY

Contact

Notes: !D2.6XD4.0 L300

[7] Contact

PJD315B234

CAPILLARY ASSY(1)

Contact

Notes: !D3.0XD4.0 L300

[8] Contact

PJD315B236

CAPILLARY ASSY(2)

Contact

Notes: !D3.5XD5.0 L200

[9] Contact

PJD315B238

CAPILLARY ASSY(4)

Contact

Notes: !D2.5XD4.0 L300

[12] Out of Stock

SSA385A052

VALVE,CHECK

Show Image

[13] In Stock

SSA357H034

STRAINER

Show Image

[14] Contact

SSA323F075A

UNION

Contact

[15] Out of Stock

PJD141A029C

PLATE ASSY

Notes: LEFT

[16] Out of Stock

PJD141A030C

PLATE ASSY

Notes: RIGHT

[17-18] Out of Stock

PJD454A010A

PAN, DRAIN

[18] Contact

SSA422C058

SOCKET

Contact

[19] In Stock

SSY511T002

MOTOR AC

[20] In Stock

SSA552A862K

CAPACITOR

Notes: CFI 10MF 450VAC Show Image

[21] In Stock

PJD116A083A

BRACKET FAN

[22] In Stock

PJD116A084A

BRACKET MOTOR

[23] In Stock

PJY116A517

BRACKET FAN

Show Image

[24-26] In Stock

PJD433B004

CASING

Notes: COWLING

[25] In Stock

PJD433B004

CASING

Notes: COWLING

[26] In Stock

PJD433B004

CASING

Notes: COWLING

[27] In Stock

SSA431D074

IMPELLER

[28] In Stock

PJA551A010N

SENSOR

Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[29] In Stock

PJA551A005AF

SENSOR

Notes: THI-R, REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[30] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

SKU: FDUR408-A HEAT EXCH. AND FAN Category: Uncategorised
