FDUR208-A HEAT EXCH. AND FAN

Name: FDUR208-A HEAT EXCH. AND FAN
SKU: FDUR208-A HEAT EXCH. AND FAN
Availability: InStock

FDUR208-A HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

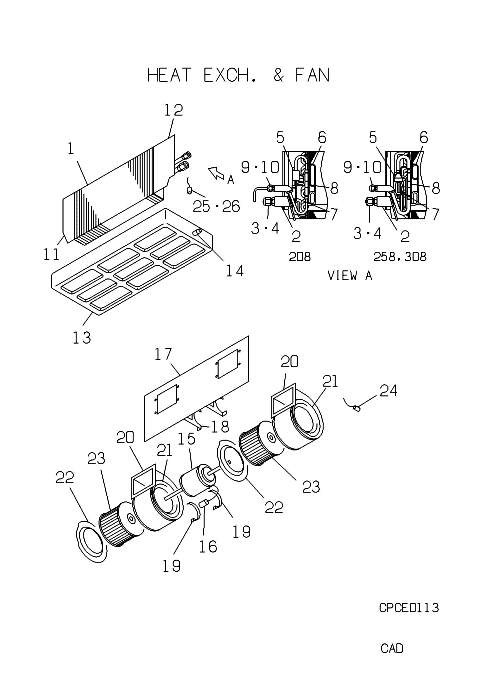

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJD311A012

HEAT EXCH

Contact

[1-12] Out of Stock

PJD301A022

HEAT EXCH

[2-4] Contact

PJD315D032

HEADER ASSY(GAS)

Contact

[3] Contact

SSA323F075C

UNION

Contact

[4] Contact

SSA357H034A

STRAINER

Contact

[5] Contact

SSA315A292

DISTRIBUTOR

Contact

[5-10] Contact

PJD315A043

DISTRIBUTOR

Contact

[6] Contact

PJD315B213

CAPILLARY

Contact

Notes: !D1.6XD3.2 L500

[7] Contact

PJD315B226

CAPILLARY ASSY(2)

Contact

Notes: !D3.5XD5.0 L200

[8] Out of Stock

SSA385A052

VALVE,CHECK

Show Image

[9] In Stock

SSA357H034

STRAINER

Show Image

[10] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[11] Contact

PJD141A029B

PLATE ASSY

Contact

Notes: LEFT

[12] Contact

PJD141A030B

PLATE ASSY

Contact

Notes: RIGHT

[13-14] In Stock

PJD454A010

PAN DRAIN

[14] Contact

SSA422C058

SOCKET

Contact

[15] In Stock

SSY511T003

MOTOR,AC

[16] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFO1,2

[17] In Stock

PJD116A083

BRACKET FAN

[18] In Stock

PJD116A084

BRAKET FAN

Show Image

[19] In Stock

PJY116A517

BRACKET FAN

Show Image

[20-22] In Stock

PJD433B003

CASING

[21] Contact

PJD433A005

SHROUD,SUCTION

Contact

[22] Contact

PJD433A005A

SHROUD,SUCTION

Contact

[23] In Stock

SSA431D073

IMPELLER

Show Image

[24] In Stock

PJA551A010N

SENSOR

Notes: THI-A, AMBIENT/RETURN AIR SENSOR. THI-A. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[25] In Stock

PJA551A005AF

SENSOR

Notes: THI-R, REFRIGERANT/COIL SENSOR. KEEP OLD SENSOR - SOME SENSORS PLUG INTO EXTENSION LEAD. Show Image

[26] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

SKU: FDUR208-A HEAT EXCH. AND FAN Category: Uncategorised
