FDUMJ90HKXE2 HEAT EXCH. AND FAN

Name: FDUMJ90HKXE2 HEAT EXCH. AND FAN
SKU: FDUMJ90HKXE2 HEAT EXCH. AND FAN
Availability: InStock

FDUMJ90HKXE2 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

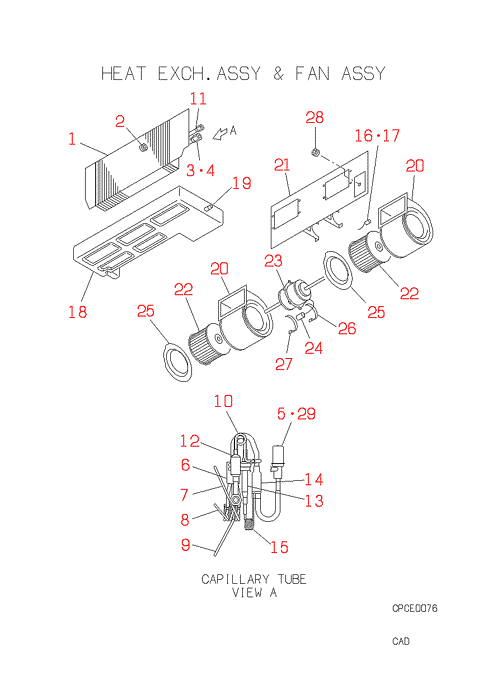

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A103A

HEAT,EX,AIR

Contact

[1-15] Contact

PJR311A104Z

HEAT,EX,AIR

Contact

[2] Contact

S751W09

GROMMET

Contact

Notes: D13

[3-4] Contact

PJR315D102A

HEADER GAS

Contact

[4] Contact

SSA323F012C

UNION,SOLDER

Contact

[5] In Stock

SSA387F021

EXP HKXA

Show Image

[6] Contact

SSA315A250B

DISTRIBUTOR

Contact

[6-9] Contact

PJR315A010C

DISTRI ASY

Contact

[7] Contact

PJR315B122

CAPILLARY A

Contact

Substitute: PJR315A010A Notes: !D1.5XD2.5 L150

[8] Contact

PJR315B123

CAPILLARY A

Contact

Substitute: PJR315A010A Notes: !D1.5XD2.5 L150

[9] Contact

PJR315B124

CAPILLARY A

Contact

Substitute: PJR315A010A Notes: !D1.5XD2.5 L150

[10] Contact

PJR315B120

CAPILLARY T

Contact

Substitute: P210V28A000

[10-13] Contact

PJR321A111F

PIPNG GS

Contact

[11] Contact

SSA323F012A

UNION

Contact

[12] Contact

SSA357A008BG

STRAINER

Contact

[13] In Stock

SSA385A015

VALVE CHECK

Show Image

[14] Contact

SSA357A008BH

STRAINER

Contact

[14-15] Contact

PJR357A103C

STRAINER

Contact

[15] Contact

PJR315B207

CAPILLARY

Contact

Notes: !D1.0XD2.0 L500

[16] Out of Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[17] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[18-19] In Stock

PJR454A102A

PAN DRAIN

[19] In Stock

SSA326A003F

PLUG

Show Image

[20] Contact

PJB433B001D

CASING

Contact

[21] Contact

PJR116A122A

FAN BRACKET

Contact

[22] In Stock

SSA431D089A

IMPELLER

[23-24] In Stock

SSA511A350C

MOTOR

[24] Contact

SSA511A35013

CAPACITOR

Contact

[25] In Stock

PJB433A001

SHROUD

Show Image

[26] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[27] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[28] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[29] In Stock

SSA382F451

COIL SOL300

Notes: SM, Expansion Valve coil Show Image

SKU: FDUMJ90HKXE2 HEAT EXCH. AND FAN Category: Uncategorised
