FDUMA22KXE5R HEAT EXCH. AND FAN

Name: FDUMA22KXE5R HEAT EXCH. AND FAN
SKU: FDUMA22KXE5R HEAT EXCH. AND FAN
Availability: InStock

FDUMA22KXE5R HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

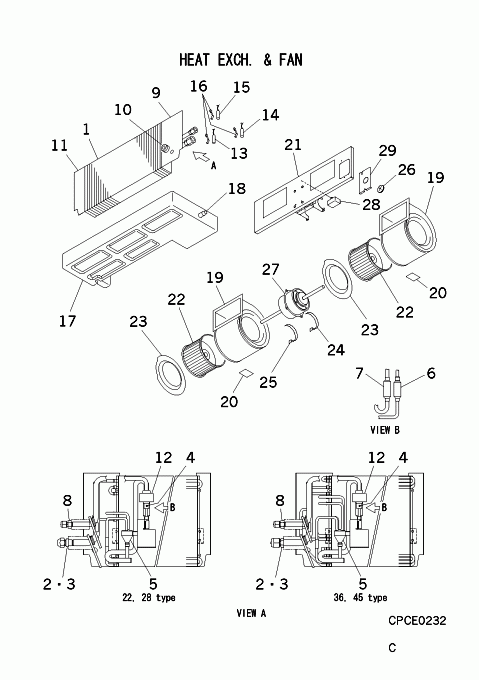

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A131A

HEAT EXCH(AIR)

Contact

[1-16] Contact

PJR301A100D

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJR315D115B

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F001C

UNION(SLD)

Contact

[4] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[5] Contact

SSA315A255C

DISTRIBUTOR

Contact

[5-6] Contact

PJR315A028A

DISTRIBUTOR

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] In Stock

SSA357A059B

STRAINER

[8] Contact

SSA323F075

UNION

Contact

[9-10] Contact

PJR141A104

PLATE BAFF

Contact

Notes: RIGHT

[10] Contact

S751W09

GROMMET

Contact

Notes: D13

[11] Contact

PJR141A105

PLATE BAFF

Contact

Notes: LEFT

[12] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[13] Out of Stock

PJA551A005

SENSOR

Notes: THI-R1(U-BEND), THI-R Show Image

[14] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2(CAPILLARY) Show Image

[15] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[16] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[17-18] In Stock

PJR454A303

PAN ASSY,DRAIN

[18] In Stock

SSA326A003F

PLUG

Show Image

[19-20] Contact

PJR433B005B

SCROLL ASSY

Contact

Substitute: PJR433B007B

[20] Contact

RSA011H005B

LABEL,NOTICE

Contact

[21] Contact

PJR116A206

BRACKET,FAN

Contact

[22] In Stock

SSA431D089

IMPELLER

[23] Out of Stock

PJB433A001C

SHROUD,SUCTION

Substitute: OUT OF PRODUCTION

[24] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[25] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[26] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[27] In Stock

SSA511T219

FAN MOTOR

[28] Contact

SSA552A847

CAPACITOR,RUNNING

Contact

Notes: 3MF 450VAC, 3MF 500VAC

[29] Contact

PJR132A105

LID

Contact

SKU: FDUMA22KXE5R HEAT EXCH. AND FAN Category: Uncategorised
