FDUMA202R CONTROL AND PARTS SET

Name: FDUMA202R CONTROL AND PARTS SET
SKU: FDUMA202R CONTROL AND PARTS SET
Availability: InStock

FDUMA202R CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

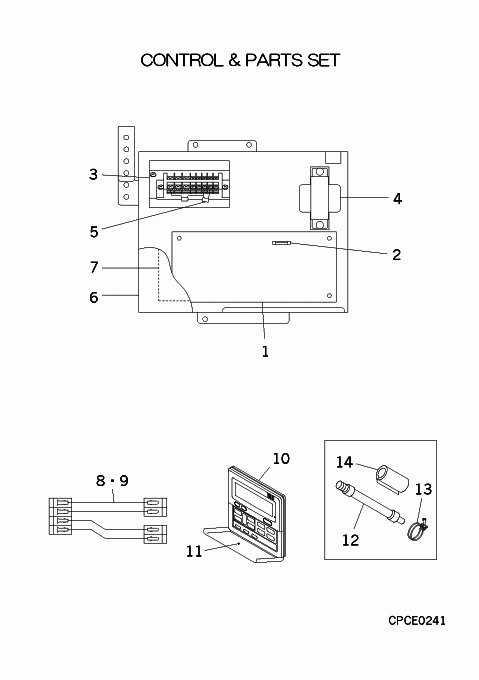

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Out of Stock

PJA505A131ZC

PWB ASSY

Substitute: OUT OF PRODUCTION Show Image

[1-5] Contact

PJR501A300

CONTROL UNIT

Contact

[2] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

[3] Contact

SSA561B716FD

BLOCK,TERMINAL

Contact

Notes: TB

[4] In Stock

SSA554A358AA

TRANSFORMER

Notes: TR Show Image

[5] Contact

PJA552F004

CAPACITOR A

Contact

[6-7] Contact

PJR142A128H

LID ASSY,CONTROL B

Contact

[7] Contact

PJR011G300

LABEL,WIRING

Contact

[8] Contact

PJR504A305

HARNESS ASSY

Contact

Notes: CNRI-CNR,CNI

[9] Contact

PJR504A221

HARNESS ASSY

Contact

Notes: CNN2-CNN3,CNN4

[10-11] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[11] Contact

PJA129A708

COVER Z

Contact

[12] In Stock

PSA006A039

HOSE SET, DRAIN

[12-14] Out of Stock

PJA006A317

PARTS SET

Notes: INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN

[13] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[14] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[15] Contact

PJR011F300A

Contact
