FDUMA140KXE5R HEAT EXCH. AND FAN

Name: FDUMA140KXE5R HEAT EXCH. AND FAN
SKU: FDUMA140KXE5R HEAT EXCH. AND FAN
Availability: InStock

FDUMA140KXE5R HEAT EXCH. AND FAN

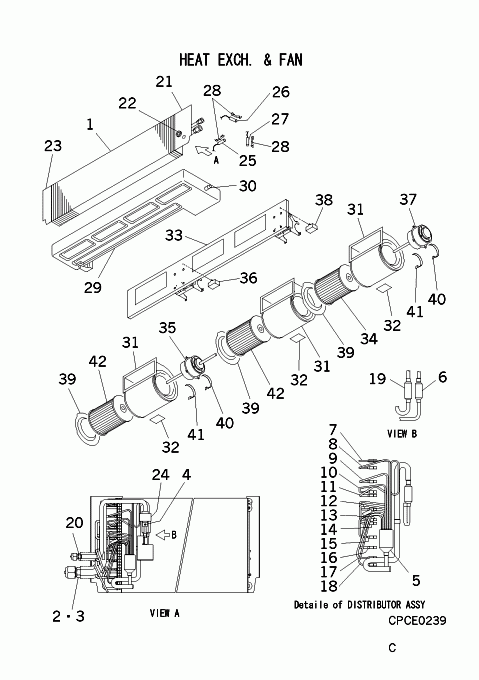

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A127

HEAT EXCH(AIR)

Contact

[1-28] Contact

PJR301A105

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJR315D111B

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVC

[5] Contact

PJA315A703F

DISTRI Z

Contact

[5-18] Contact

PJR315A032

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] Contact

PJR315B237

CAPILLARY(1)

Contact

Notes: !D2.0XD3.2 L500

[8] Contact

PJR315B238

CAPILLARY(2)

Contact

Notes: !D2.0XD3.2 L310

[9] Contact

PJR315B239

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L270

[10] Contact

PJR315B240

CAPILLARY(4)

Contact

Notes: !D2.2XD4.0 L250

[11] Contact

PJR315B241

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L230

[12] Contact

PJR315B242

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L190

[13] Contact

PJR315B243

CAPILLARY(7)

Contact

Notes: !D2.6XD4.0 L200

[14] Contact

PJR315B244

CAPILLARY(8)

Contact

Notes: !D2.6XD4.0 L160

[15] Contact

PJR315B245

CAPILLARY(9)

Contact

Notes: !D2.2XD3.2 L180

[16] Contact

PJR315B246

CAPILLARY(10)

Contact

Notes: !D2.2XD3.2 L210

[17] Contact

PJR315B247

CAPILLARY(11)

Contact

Notes: !D2.2XD3.2 L220

[18] Contact

PJR315B248

CAPILLARY(12)

Contact

Notes: !D3.0XD4.0 L230

[19] In Stock

SSA357A059B

STRAINER

[20] Contact

SSA323F012A

UNION

Contact

[21-22] Contact

PJR141A100

PLATE BAFF

Contact

Notes: RIGHT

[22] Contact

S751W09

GROMMET

Contact

Notes: D13

[23] Contact

PJR141A101

PLATE BAFF

Contact

Notes: LEFT

[24] Contact

SSA382F212M

SOLENOID

Contact

Notes: FOR SM

[25] Out of Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[26] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2(CAPILLARY) Show Image

[27] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3(GAS HEADER) Show Image

[28] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[29-30] Contact

PJR454A300

PAN ASSY,DRAIN

Contact

[30] In Stock

SSA326A003F

PLUG

Show Image

[31-32] Contact

PJR433B005C

SCROLL ASSY

Contact

[32] Contact

RSA011H005B

LABEL,NOTICE

Contact

[33] Contact

PJR116A207

BRACKET,FAN

Contact

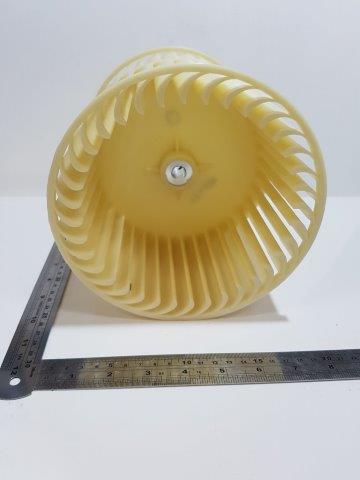

[34] In Stock

SSA431D036G

FAN

Notes: RIGHT Show Image

[35] In Stock

SSA511T223

MOTOR,AC

Notes: LEFT, left side

[36] In Stock

SSA552A774

CAPACITOR

Notes: 6MF 450VAC Show Image

[37] In Stock

SSA511T225

FAN MOTOR

Notes: RIGHT, (right side motor)

[38] Contact

SSA552A847

CAPACITOR,RUNNING

Contact

Notes: 3MF 500VAC

[39] Out of Stock

PJB433A001C

SHROUD,SUCTION

Substitute: OUT OF PRODUCTION

[40] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[41] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[42] In Stock

SSA431D089A

IMPELLER

Notes: CENTER,LEFT

SKU: FDUMA140KXE5R HEAT EXCH. AND FAN Category: Uncategorised
