FDUMA140KXE5R CONTROL AND PARTS SET

Name: FDUMA140KXE5R CONTROL AND PARTS SET
SKU: FDUMA140KXE5R CONTROL AND PARTS SET
Availability: InStock

FDUMA140KXE5R CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

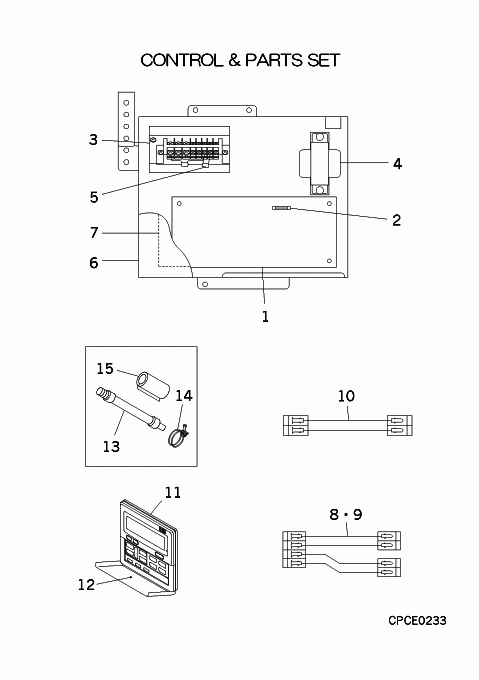

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Out of Stock

PJA505A158ZA

PWB

Notes: OUT OF PRODUCTION - INDOOR PC BOARD Show Image

[1-5] In Stock

PJR501A301J

CONTROL ASSY

Notes: NOT FOR SALE

[2] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[3] Contact

SSA561B716DG

BLOCK TERMI

Contact

Notes: TB

[4] In Stock

SSA554A454

TRANSFORMER

Notes: TRI Show Image

[5] Contact

PJA552F004

CAPACITOR A

Contact

[6-7] Contact

PJR142A128G

LID ASSY,CONTROL B

Contact

[7] Contact

PJR011G024

LABEL,WIRING

Contact

Notes: !

[8] Contact

PJR504A305A

HARNESS ASSY

Contact

Notes: CNRI-CNR,CNI

[9] Contact

PJR504A232A

HARNESS ASSY

Contact

Notes: CNN3-THI-R1 CNN5,THI-R2 CNN6

[10] Contact

PJR504A231A

HARNESS ASSY

Contact

Notes: CNN4-THI-R3 CNN7

[11-12] Out of Stock

PJA502A700AC

WALL CONTROLLER

Substitute: RC-E1R Notes: RC-E1R, RC-E1 / RC-E1R - 3 WIRE, X-Y-Z

[12] Contact

PJA129A708

COVER Z

Contact

[13] In Stock

PSA006A039

HOSE SET, DRAIN

[13-15] Out of Stock

PJA006A317

PARTS SET

Notes: INCL.CLAMP,HOSE, INCL.CLAMP,HOSE INSULATION SET HOSE,DRAIN

[14] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[15] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[16] Contact

PJR011F301K

LABEL,MODEL NAME

Contact
