FDUMA112KXE5R CABINET ASSY

Name: FDUMA112KXE5R CABINET ASSY
SKU: FDUMA112KXE5R CABINET ASSY
Availability: InStock

FDUMA112KXE5R CABINET ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

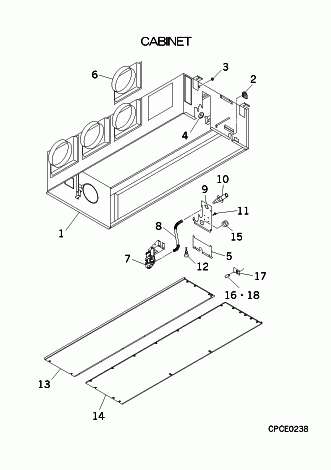

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-4] Contact

PJR100A116

CABINET ASSY

Contact

[2] Contact

SSA947B027A

GROMMET

Contact

[3] Contact

S751W09

GROMMET

Contact

Notes: D13

[4] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[5] In Stock

PJR132A101D

LID

[6] In Stock

PJR438A102

JOINT DUCT

Show Image

[7] In Stock

PJA451A510V

PUMP ASSY,DRAIN

Notes: DM Show Image

[7-11] Contact

PJR451A300

PUMP ASSY,DRAIN

Contact

[8] In Stock

SSA423A092A

HOSE,DRAIN

Show Image

[9] In Stock

PJR132A119

LID

[10] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[11] Contact

SSA913D006

SCREW

Contact

Notes: 4X8, 1pc ONLY

[12] In Stock

SSA536A017T

SWITCH, FLOAT

Notes: FS, OUT OF PRODUCTION CABLE LENGTH 66.5CM Show Image

[13] Contact

PJR111A117B

PLATE ASSY,BOTTOM

Contact

[14] Contact

PJR111A118B

PLATE ASSY,BOTTOM(

Contact

[15] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[16] Out of Stock

PJA551A010

SENSOR ASSY

Notes: THI-A Show Image

[16-18] Contact

PJR551A001B

SENSOR

Contact

[17] Contact

SSA947B010

GROMMET

Contact

[18] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[19] In Stock

PSA006A039

HOSE SET, DRAIN

Notes: SEE SECTION

[20] In Stock

V300Y38

CLAMP

Notes: SEE SECTION, CLAMP Show Image

SKU: FDUMA112KXE5R CABINET ASSY Category: Uncategorised
