FDUMA112KXE4A HEAT EXCH. ASSY

Name: FDUMA112KXE4A HEAT EXCH. ASSY
SKU: FDUMA112KXE4A HEAT EXCH. ASSY
Availability: InStock

FDUMA112KXE4A HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

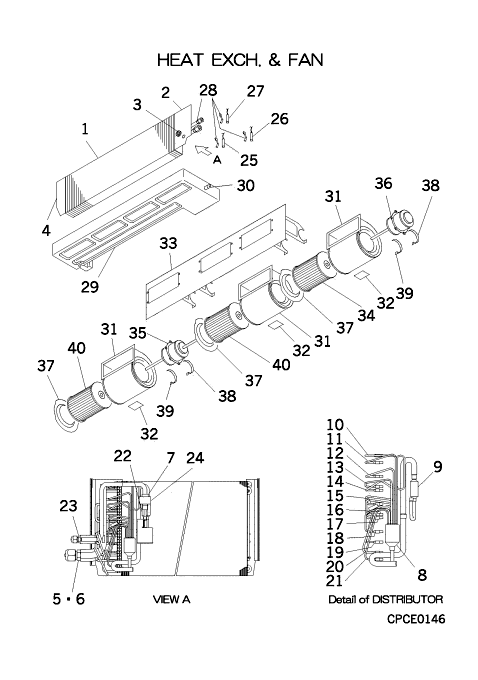

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A127

HEAT EXCH(AIR)

Contact

[1-24] Contact

PJR301A102

HEAT EXCH A

Contact

[2-3] Contact

PJR141A100

PLATE BAFF

Contact

Notes: RIGHT

[3] Contact

S751W09

GROMMET

Contact

Notes: D13

[4] Contact

PJR141A101

PLATE BAFF

Contact

Notes: LEFT

[5-6] Contact

PJR315D111B

HEADER ASSY,GAS

Contact

[6] Contact

SSA323F012C

UNION,SOLDER

Contact

[7] In Stock

SSA387F036

EXP VALVE

Notes: SM, EEV(HEAT) or EEVH1-EEVH2 Show Image

[8] Contact

PJA315A703F

DISTRI Z

Contact

[8-21] Contact

PJR315A030

DISTRIBUTOR

Contact

[9] In Stock

SSA357A059T

STRAINER

[10] Contact

PJR315B237

CAPILLARY(1)

Contact

Notes: !D2.0XD3.2 L500

[11] Contact

PJR315B238

CAPILLARY(2)

Contact

Notes: !D2.0XD3.2 L310

[12] Contact

PJR315B239

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L270

[13] Contact

PJR315B240

CAPILLARY(4)

Contact

Notes: !D2.2XD3.2 L250, !D2.2XD4.0 L250

[14] Contact

PJR315B241

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L230

[15] Contact

PJR315B242

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L190

[16] Contact

PJR315B243

CAPILLARY(7)

Contact

Notes: !D2.6XD4.0 L200

[17] Contact

PJR315B244

CAPILLARY(8)

Contact

Notes: !D2.6XD4.0 L160

[18] Contact

PJR315B245

CAPILLARY(9)

Contact

Notes: !D2.2XD3.2 L180

[19] Contact

PJR315B246

CAPILLARY(10)

Contact

Notes: !D2.2XD3.2 L210

[20] Contact

PJR315B247

CAPILLARY(11)

Contact

Notes: !D2.2XD3.2 L220

[21] Contact

PJR315B248

CAPILLARY(12)

Contact

Notes: !D3.0XD4.0 L230

[22] In Stock

SSA357A059B

STRAINER

[23] Contact

SSA323F012A

UNION

Contact

[24] In Stock

SSA382F228J

COIL SOLENOID

Notes: FOR SM, LENGTH 40CM Show Image

[25] Out of Stock

PJA551A005

SENSOR

Notes: THI-R1, THI-R Show Image

[26] In Stock

PJA551A005AW

SENSOR

Notes: THI-R2 Show Image

[27] In Stock

PJA551A005AY

SENSOR

Notes: THI-R3 Show Image

[28] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R1,2,3 Show Image

[29-30] In Stock

PJR454A100

PAN DRAIN

[30] In Stock

SSA326A003F

PLUG

Show Image

[31-32] In Stock

PJB433B001G

CASING

[32] Contact

RSA011H005B

LABEL,NOTICE

Contact

[33] Contact

PJR116A102

FAN BRACKET

Contact

[34] In Stock

SSA431D089B

IMPELLER

Notes: RIGHT

[35] Out of Stock

SSA511A350B

MOTOR

Substitute: PJR006A110B Notes: 6002ZZ LEFT

[36] In Stock

SSA511A352B

MOTOR

Notes: 6201ZZ RIGHT

[37] In Stock

PJB433A001

SHROUD

Show Image

[38] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[39] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[40] In Stock

SSA431D089A

IMPELLER

Notes: CENTER,LEFT
