FDUM71KXE6D CABINET ASSY

Name: FDUM71KXE6D CABINET ASSY
SKU: FDUM71KXE6D CABINET ASSY
Availability: InStock

FDUM71KXE6D CABINET ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

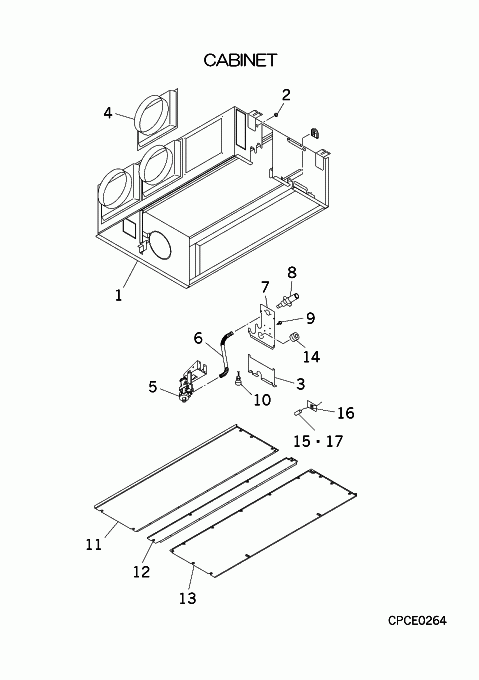

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PJR100A115B

CABINET ASSY

Contact

[2] Contact

S751W09

GROMMET

Contact

Notes: D13

[3] In Stock

PJR132A101D

LID

[5] In Stock

PJA451A510M

DRAIN PUMP

Show Image

[5-9] In Stock

PJR451A300A

PUMP ASSY,DRAIN

Notes: includes Drain Hose, Lid & Socket

[6] In Stock

SSA423A092A

HOSE,DRAIN

Show Image

[7] In Stock

PJR132A119

LID

[8] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[9] Contact

SSA913D006

SCREW

Contact

Notes: 4X8, 1pc ONLY

[10] In Stock

SSA536A029F

FLOAT SWITCH

Notes: FS Show Image

[11] Contact

PJR111A117A

PLATE ASSY,BOTTOM

Contact

[12] Contact

PJR111A119A

PLATE ASSY,BOTTOM(

Contact

[13] Contact

PJR111A118A

PLATE ASSY,BOTTOM(

Contact

[14] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[15] In Stock

PSA551A008D

SENSOR ASSY

Notes: THI-A Show Image

[15-17] Contact

PJR551A001F

SENSOR(TEMPERATURE

Contact

[16] Contact

SSA947B010

GROMMET

Contact

Notes: 10X10

[17] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[18] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[19] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

SKU: FDUM71KXE6D CABINET ASSY Category: Uncategorised
