FDUM631HKXE CONTROL AND PARTS SET

Name: FDUM631HKXE CONTROL AND PARTS SET
SKU: FDUM631HKXE CONTROL AND PARTS SET
Availability: InStock

FDUM631HKXE CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

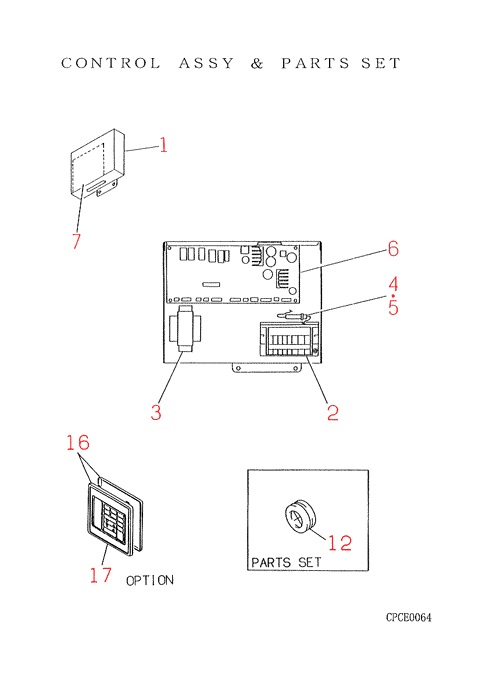

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-6] Contact

PJR501A112AC

Contact

[2] Contact

SSA561B203DG

BLOCK,TERMINAL

Contact

Substitute: SSA561B210

[3] In Stock

PJA554A005D

TRANSFORMER

Notes: TR

[4] In Stock

SSA564B004

HOLDER,FUSE

Show Image

[5] In Stock

E200Y05C

FUSE AS85

Show Image

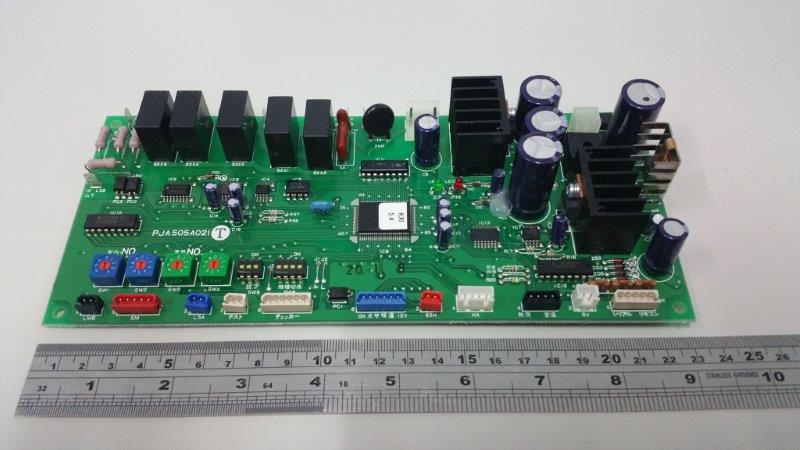

[6] In Stock

PJA505A020DG

PWB INVERTA

Show Image

[7] Contact

PSB011G714

LABEL,WIRING

Contact

[11-14] Contact

PJR008A124T

Contact

Notes: !INCL.INSULATION SET CLAMP,HOSE MANUAL

[12] In Stock

S751W30

GROMMET

Show Image

[13] Contact

PSA012B048

MANUAL,INSTRUCTION

Contact

[14] Contact

PSA011F490J

Contact

[16-17] Contact

PJA502A006AB

REMOCON ASSY

Contact

Substitute: PJA502A010H

[16-18] Out of Stock

PJA502A010H

REMOCON

Notes: !OPTION PARTS

[17] Contact

PFA142A212AA

CASE(U)

Contact

[18] Contact

PFA006A201

PARTS SET

Contact
