FDUM60VF CONTROL AND PARTS SET

Name: FDUM60VF CONTROL AND PARTS SET
SKU: FDUM60VF CONTROL AND PARTS SET
Availability: InStock

FDUM60VF CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

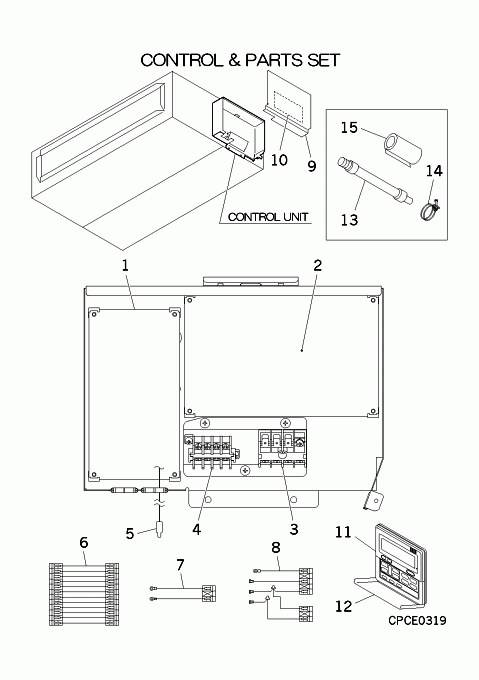

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228T

PWB ASSY (CONTROL)

Notes: CONTROL. CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image

[1-8] Contact

PJG501A001AJ

CONTROL UNIT

Contact

[2] In Stock

PJA505A331AG

PWB ASSY (POWER)

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[6] In Stock

PJG504A001

WIRING(PWB)

Notes: CNW2- CNW1

[7] Contact

PJF504A006C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[8] Contact

PJG504A002

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2,TB1 3- CNW0,CNW3

[9] Contact

PJG142A003

LID ASSY,CONTROL B

Contact

[10] Contact

PJG011G001

LABEL,WIRING

Contact

[11-12] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E5, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[12] Contact

PJA129A708

COVER Z

Contact

[13] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[13-15] In Stock

PJF008A001D

PARTS SET

[14] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[15] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[16] Contact

PJG011F001F

LABEL,MODEL NAME

Contact
