FDUM56KXE6F/B CONTROL AND PARTS SET

Name: FDUM56KXE6F/B CONTROL AND PARTS SET
SKU: FDUM56KXE6F/B CONTROL AND PARTS SET
Availability: InStock

FDUM56KXE6F/B CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

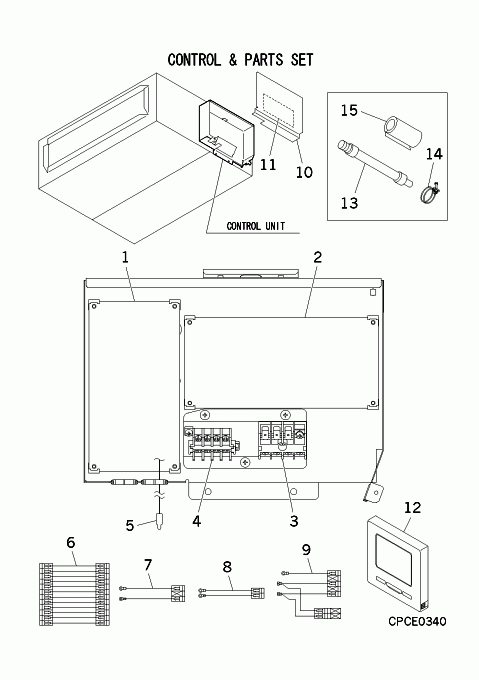

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A229D

PWB ASSY CONTROL

Notes: CONTROL BOARD Show Image

[1-9] Contact

PJG501A008AH

CONTROL UNIT

Contact

Notes: Not suitable for this model, NOT AVAILABLE

[2] In Stock

PJA505A230R

PWB ASSY(POWER)

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[6] In Stock

PJG504A001

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1

[7] Contact

PJF504A006C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[8] Contact

PJF504A010D

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[9] Contact

PJG504A007

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU

[10] Contact

PJG142A003

LID ASSY,CONTROL B

Contact

[11] Contact

PJG011G005

LABEL,WIRING

Contact

Notes: Not suitable for this model

[12] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[13] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[13-15] In Stock

PJF008A001D

PARTS SET

[14] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[15] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[16] Contact

PJG011F008BF

LABEL,MODEL NAME

Contact

Notes: Not suitable for this model

SKU: FDUM56KXE6F/B CONTROL AND PARTS SET Category: Uncategorised
