FDUM45KXE6F-W/1 CONTROL AND PARTS SET

Name: FDUM45KXE6F-W/1 CONTROL AND PARTS SET
SKU: FDUM45KXE6F-W/1 CONTROL AND PARTS SET
Availability: InStock

FDUM45KXE6F-W/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

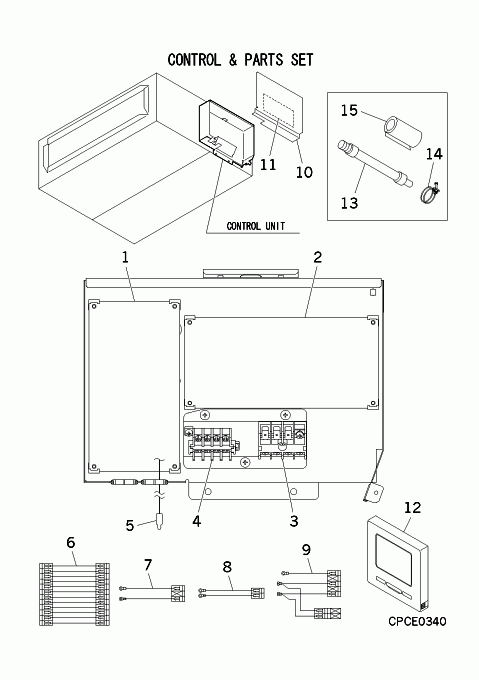

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A229ML

PWB ASSY (CONTROL)

Notes: ONLY FOR SUPPLY PARTS

[1-9] Contact

PJG501A008KF

CONTROL UNIT

Contact

Notes: ?, NOT AVAILABLE

[2] In Stock

PJA505A230R

PWB ASSY(POWER)

Notes: ONLY FOR SUPPLY PARTS

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[6] In Stock

PJG504A001

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1

[7] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[8] Contact

PJF504A010H

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[9] Contact

PJG504A007

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU

[10] Contact

PJG142A003

LID ASSY,CONTROL B

Contact

[11] Contact

PJG011G028

LABEL,WIRING

Contact

Notes: ?

[12] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[13] In Stock

SSA423A101C

HOSE,DRAIN

Notes: LENGTH 26CM Show Image

[13-15] Out of Stock

PJF008A001AW

PARTS SET

Notes: Includes Drain Hose, Hose Clamp & Insulation

[14] In Stock

V300Y42

HOSE CLAMP

[15] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[16] Contact

PJG011F085D

LABEL,MODEL NAME

Contact

Notes: ?
