FDUM28KXE6F/F HEAT EXCH. AND FAN

Name: FDUM28KXE6F/F HEAT EXCH. AND FAN
SKU: FDUM28KXE6F/F HEAT EXCH. AND FAN
Availability: InStock

FDUM28KXE6F/F HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

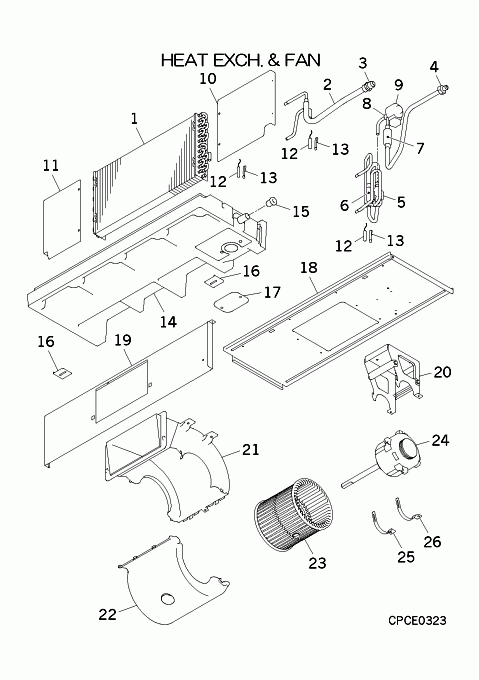

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJC311A119A

HEAT EXCH(AIR)

Contact

Notes: !

[1-13] Contact

PJG301A004N

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJG315D005A

HEADER ASSY,GAS

Contact

Notes: !

[3] Contact

SSA323F092A

UNION,SOLDER

Contact

[4] Contact

SSA323F075

UNION

Contact

[5] Contact

SSA315A255C

DISTRIBUTOR

Contact

Notes: !

[5-6] Contact

PJG315A009

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] In Stock

SSA357A005C

STRAINER

Show Image

[8] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[9] In Stock

SSA382F228AW

COIL,SOLENOID

Notes: FOR SM

[10] Contact

PJG141A005

PLATE,BAFFLE(R)

Contact

[11] Contact

PJG141A006

PLATE,BAFFLE(L)

Contact

[12] In Stock

PJF551A002H

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3, LENGTH 68.5CM Show Image

[13] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[14-15] In Stock

PJG454A001B

DRAIN PAN

[15] In Stock

SSA326A003F

PLUG

Show Image

[16] In Stock

PJG116A009

BRACKET

Show Image

[17] In Stock

PJG142A006

LID ASSY(DRAIN)

Notes: LENGTH 10CM Show Image

[18] Contact

PJG119A001

PLATE(BASE,FAN)

Contact

[19] Contact

PJG119A003

PLATE,FAN

Contact

[20] In Stock

PJG116A001B

BRACKET ASSY(MOTOR)

Show Image

[21] In Stock

PJG433B001

BELLMOUTH

Notes: Upper

[22] In Stock

PJG433B002

BELLMOUTH

Notes: Lower

[23] In Stock

SSA431D093A

IMPELLER

Show Image

[24] In Stock

SSA512T108ZC

MOTOR,DC

Notes: SINGLE SHAFT

[25] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[26] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image
