FDUM140KXE6D HEAT EXCH. AND FAN

Name: FDUM140KXE6D HEAT EXCH. AND FAN
SKU: FDUM140KXE6D HEAT EXCH. AND FAN
Availability: InStock

FDUM140KXE6D HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

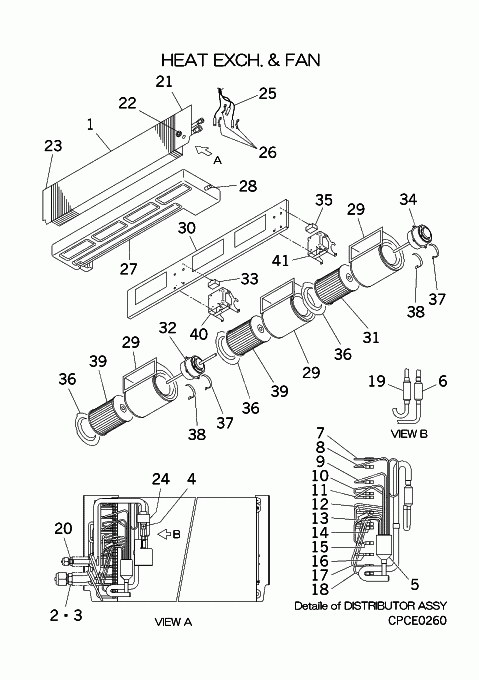

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJR311A127

HEAT EXCH(AIR)

Contact

[1-26] Contact

PJR301A105B

HEAT EXCH ASSY(AIR

Contact

Substitute: PJR301A105C

[2-3] Contact

PJR315D111C

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA387F045A

VALVE EXPA

Notes: EEVC

[5-18] Contact

PJR315A032

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] Contact

PJR315B237

CAPILLARY(1)

Contact

Notes: !D2.0XD3.2 L500

[8] Contact

PJR315B238

CAPILLARY(2)

Contact

Notes: !D2.0XD3.2 L310

[9] Contact

PJR315B239

CAPILLARY(3)

Contact

Notes: !D2.6XD4.0 L270

[10] Contact

PJR315B240

CAPILLARY(4)

Contact

Notes: !D2.2XD4.0 L250

[11] Contact

PJR315B241

CAPILLARY(5)

Contact

Notes: !D2.6XD4.0 L230

[12] Contact

PJR315B242

CAPILLARY(6)

Contact

Notes: !D2.6XD4.0 L190

[13] Contact

PJR315B243

CAPILLARY(7)

Contact

Notes: !D2.6XD4.0 L200

[14] Contact

PJR315B244

CAPILLARY(8)

Contact

Notes: !D2.6XD4.0 L160

[15] Contact

PJR315B245

CAPILLARY(9)

Contact

Notes: !D2.2XD3.2 L180

[16] Contact

PJR315B246

CAPILLARY(10)

Contact

Notes: !D2.2XD3.2 L210

[17] Contact

PJR315B247

CAPILLARY(11)

Contact

Notes: !D2.2XD3.2 L220

[18] Contact

PJR315B248

CAPILLARY(12)

Contact

Notes: !D3.0XD4.0 L230

[19] In Stock

SSA357A059B

STRAINER

[20] Contact

SSA323F012A

UNION

Contact

[21-22] Contact

PJR141A100

PLATE BAFF

Contact

Notes: RIGHT

[22] Contact

S751W09

GROMMET

Contact

Notes: D13

[23] Contact

PJR141A101

PLATE BAFF

Contact

Notes: LEFT

[24] In Stock

SSA382F212W

COIL SOLENOID

Notes: FOR EEVH Show Image

[25] In Stock

PSA551A010B

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3 Show Image

[26] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[27-28] Contact

PJR454A300

PAN ASSY,DRAIN

Contact

[28] In Stock

SSA326A003F

PLUG

Show Image

[29] In Stock

PJR433B007A

SCROLL ASSY

[30] Contact

PJR116A207A

BRACKET,FAN

Contact

[31] In Stock

SSA431D036G

FAN

Notes: RIGHT Show Image

[32] In Stock

SSA511T223

MOTOR,AC

Notes: LEFT, left side

[33] In Stock

SSA552A774

CAPACITOR

Notes: 6MF 450VAC Show Image

[34] In Stock

SSA511T225

FAN MOTOR

Notes: RIGHT, (right side motor)

[35] Contact

SSA552A847

CAPACITOR,RUNNING

Contact

Notes: 3MF 500VAC

[36] Out of Stock

PJB433A001C

SHROUD,SUCTION

Substitute: OUT OF PRODUCTION

[37] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[38] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[39] In Stock

SSA431D089A

IMPELLER

[40] Contact

PJR116A211

BRACKET(MOTOR)

Contact

[41] Contact

PJR116A211A

BRACKET(MOTOR)

Contact

SKU: FDUM140KXE6D HEAT EXCH. AND FAN Category: Uncategorised
