FDUH28KXE6D HEAT EXCH. AND FAN

Name: FDUH28KXE6D HEAT EXCH. AND FAN
SKU: FDUH28KXE6D HEAT EXCH. AND FAN
Availability: InStock

FDUH28KXE6D HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

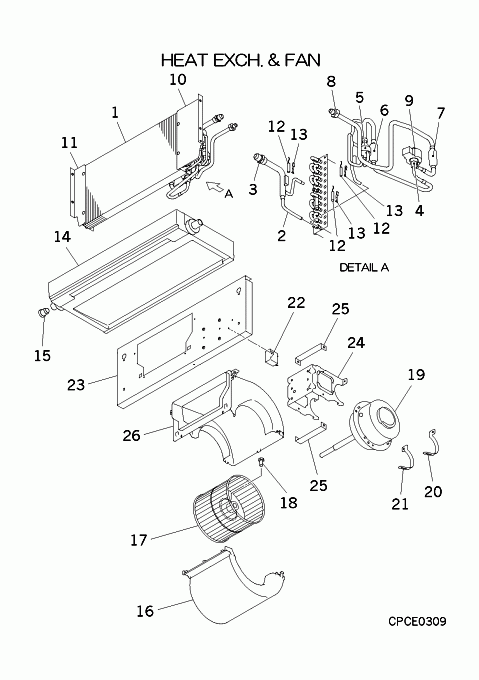

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJC311A119

HEAT EXCH(AIR)

Contact

[1-13] Contact

PJC301A114A

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJC315D133

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F001C

UNION(SLD)

Contact

[4] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[5] Contact

SSA315A255C

DISTRIBUTOR

Contact

[5-6] Contact

PJC315A111

DISTRIBUTOR

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] In Stock

SSA357A059B

STRAINER

[8] Contact

SSA323F075

UNION

Contact

Notes: LIQ.

[9] In Stock

SSA382F228Y

COIL SOLENOID

Notes: FOR SM or EEVH2 Show Image

[10] Contact

PJC141A122

PLATE ASSY,BAFFLE(

Contact

[11] Contact

PJC141A124

PLATE ASSY,BAFFLE(

Contact

[12] In Stock

PJF551A002G

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3 Show Image

[13] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[14-15] Contact

PJC454A200

PAN ASSY,DRAIN

Contact

[15] In Stock

SSA326A003F

PLUG

Show Image

[16] In Stock

PSA099A616

CASING ASSY

Notes: LOWER, UPPER & LOWER

[17-18] In Stock

SSA431D081A

IMPELLER

Notes: FAN BARREL Show Image

[18] Contact

SSA912F002DF

SCREW,SET(S

Contact

Notes: M6X8, 1pc ONLY

[19] In Stock

SSA511T807A

MOTOR,AC

[20] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[21] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[22] In Stock

SSA552A153

CAPACITOR,R

Notes: 1.6MF 460VAC Show Image

[23] Contact

PJC116A146

BRACKET ASSY

Contact

[24] Contact

PJC116A144

BRACKET(MOTOR)

Contact

[25] Contact

PJC119A070

PLATE

Contact

[26] In Stock

PFA433B606A

CASING ASSY

SKU: FDUH28KXE6D HEAT EXCH. AND FAN Category: Uncategorised
