FDUH22KXE6F/1 CONTROL AND PARTS SET

Name: FDUH22KXE6F/1 CONTROL AND PARTS SET
SKU: FDUH22KXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDUH22KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

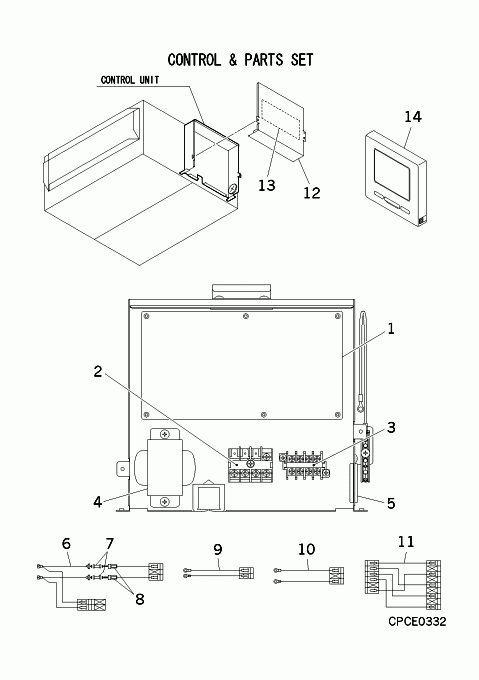

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A193VD

PWB ASSY

Show Image

[1-11] Contact

PJC501A205AA

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6-8] Contact

PFA504A618K

WIRING(TB,POWER)

Contact

Notes: TB1 1,TB1 2- CNW0 PWB,CNU

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[9] Contact

PJF504A010F

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[10] Contact

PJF504A006C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[11] Contact

PJC504A048A

WIRING(FM)

Contact

Notes: CNF1 FMI1- CNM3 PWB

[12-13] Contact

PJC142A212

LID ASSY,CONTROL B

Contact

[13] Contact

PJC011G203

LABEL,WIRING

Contact

[14] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[15] Contact

PJC011F208A

Contact

SKU: FDUH22KXE6F/1 CONTROL AND PARTS SET Category: Uncategorised
