FDUH22KXE6/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

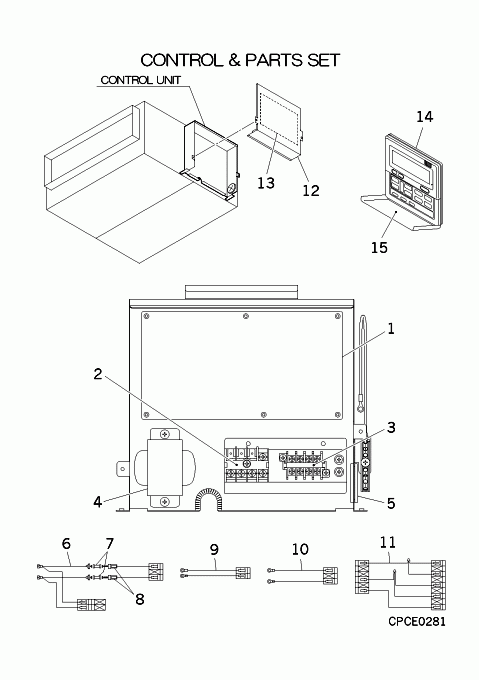

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A193ZD

PWB

Show Image

[1-11] Contact

PJC501A200AA

Contact

[2] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6-8] Contact

PFA504A618J

Contact

Notes: TB1 1,TB1 2- CNWO PWB,CNU

[7] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[8] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[9] Contact

PJF504A010F

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[10] Contact

PJF504A006C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[11] Contact

PJC504A200

Contact

Notes: CNF1- PWB CNM3

[12-13] Contact

PJC142A202

Contact

[13] Contact

PJC011G200

Contact

[14-15] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[15] Contact

PJA129A708

COVER Z

Contact

[16] Contact

PJC011F200A

Contact
