FDUA200VG/1 CONTROL AND PARTS SET

Name: FDUA200VG/1 CONTROL AND PARTS SET
SKU: FDUA200VG/1 CONTROL AND PARTS SET
Availability: InStock

FDUA200VG/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

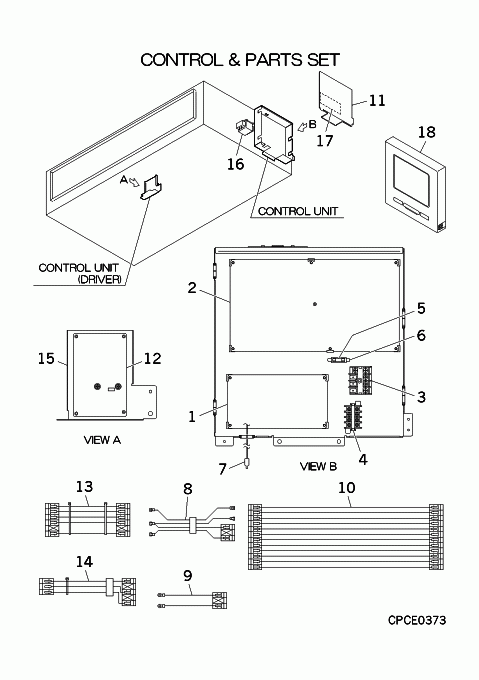

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A228DK

PWB ASSY (CONTROL)

Notes: Control PCB. CONFIRM SERVICE CODE-MANY PARTS ENDING 228 Show Image

[1-10] Contact

PJG501A013CS

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] In Stock

PJA505A248C

PWB ASSY(POWER)

[3] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: 10A, F1 10A Show Image

[6] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[7] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[8] Contact

PJG504A017

HARNESS ASSY

Contact

Notes: TB1 1,TB1 2,TB1 3- FH,T2,CNW3

[9] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[10] Contact

PJG504A001H

WIRING(PWB)

Contact

Notes: CNW2 PWB- CNW1 PWB

[11] Contact

PJG142A031

LID,CONTROL BOX

Contact

[12] In Stock

PJA505A251A

PWB ASSY(MOTOR)

[12-15] Contact

PJG501A015

CONTROL UNIT(DRIVE

Contact

Notes: NOT AVAILABLE

[13] Contact

PJG504A015

WIRING(CNM)

Contact

Notes: CNM1PWB- CNM PWB

[14] Contact

PJG504A016

WIRING(FM)

Contact

Notes: CNFM2- CNFMPWB

[15] Contact

PJG142A034

LID ASSY(DRIVER)

Contact

[16] In Stock

SSA554B115

REACTOR

[17] Contact

PJG011G012

LABEL,WIRING

Contact

[18] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[19] Contact

PJG011F020AS

LABEL,MODEL NAME

Contact
