FDUA1001 HEAT EXCH. AND FAN

Name: FDUA1001 HEAT EXCH. AND FAN
SKU: FDUA1001 HEAT EXCH. AND FAN
Availability: InStock

FDUA1001 HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

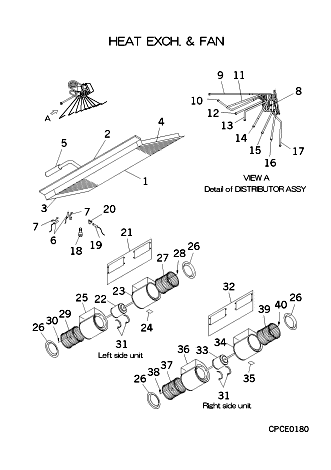

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJD311A001K

HEAT EXCH

[1-17] Contact

PJD301A033A

HEAT EXCH

Contact

[2] Contact

PJD141A002B

PLATE BAFF

Contact

[3] Contact

PJD141A007

PLATE BAFF

Contact

Notes: LEFT

[4] Contact

PJD141A008

PLATE BAFF

Contact

Notes: RIGHT

[5] Contact

PJD315D055

HEADER ASSY,GAS

Contact

[6] In Stock

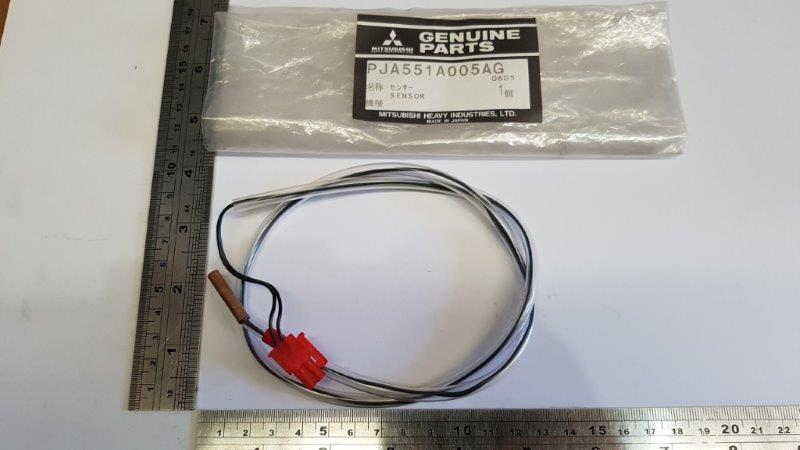

PJA551A005AG

SENSOR

Notes: THI-R1,2 Show Image

[7] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR SENSOR Show Image

[8] Contact

SSA315A206J

DISTRIBUTOR

Contact

[8-17] Contact

PJD315A058A

DISTRIBUTOR ASSY

Contact

[9] Contact

PJD315B118A

CAPILLARY A

Contact

Notes: !D3.0XD4.0 L400

[10] Contact

PJD315B147

CAPILLARY A

Contact

Notes: !D3.0XD4.0 L500

[11] Contact

PJD315B120A

CAPILLARY A

Contact

Notes: !D2.8XD4.0 L400

[12] Contact

PJD315B121A

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[13] Contact

PJD315B148

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[14] Contact

PJD315B123A

CAPILLARY A

Contact

Notes: !D2.2XD4.0 L400

[15] Contact

PJD315B124A

CAPILLARY A

Contact

Notes: !D2.0XD4.0 L400

[16] Contact

PJD315B125A

CAPILLARY A

Contact

Notes: !D2.2XD4.0 L400

[17] Contact

PJD315B126A

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[18] In Stock

PJD536A002B

SWITCH ASSY

Notes: FS Show Image

[19] In Stock

PJA551A010T

SENSOR(TEMP

Notes: THI-A Show Image

[19-20] Contact

PJD551A001C

SENSOR ASSY

Contact

[20] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[21] In Stock

PJD116A014A

BRAKET FAN

[22] In Stock

SSA511A365V

MOTOR AC

Notes: LEFT FAN EQUIP., LOOKING AT SUPPLY SIDE OF UNIT - LEFT SIDE MOTOR

[23-24] In Stock

PJD433A001F

CASING

[24] Contact

RSA011H005

LABEL

Contact

[25] In Stock

PJD433A001C

CASING

[26] In Stock

PDD433A003

SHROUD

[27-28] In Stock

SSA431C020B

IMPELLER

[28] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[29-30] In Stock

SSA431C020C

IMPELLER

[30] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[31] In Stock

PFA116A108

BRACKET

Show Image

[32] In Stock

PJD116A014

FAN BRACKET

Notes: RIGHT FAN EQUIP.

[33] In Stock

SSA511A364V

MOTOR AC

Notes: RIGHT FAN EQUIP., RIGHT SIDE MOTOR - LOOKING AT SUPPLY SIDE OF UNIT

[34-35] In Stock

PJD433A001D

CASING

Notes: RIGHT SIDE OF RIGHT FAN EQUIP, RIGHT SIDE OF RIGHT FAN EQUIP.

[35] Contact

RSA011H005

LABEL

Contact

[36] In Stock

PJD433A001A

CASING

Show Image

[37-38] In Stock

SSA431C005

IMPELLER

[38] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

[39-40] In Stock

SSA431C005A

IMPELLER

[40] In Stock

SSA912F203

SCREW,SET

Notes: M8X12, 1pc ONLY/ LENGTH 2CM Show Image

SKU: FDUA1001 HEAT EXCH. AND FAN Category: Uncategorised
