FDU71KXE6 PANEL ASSY

Name: FDU71KXE6 PANEL ASSY
SKU: FDU71KXE6 PANEL ASSY
Availability: InStock

FDU71KXE6 PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

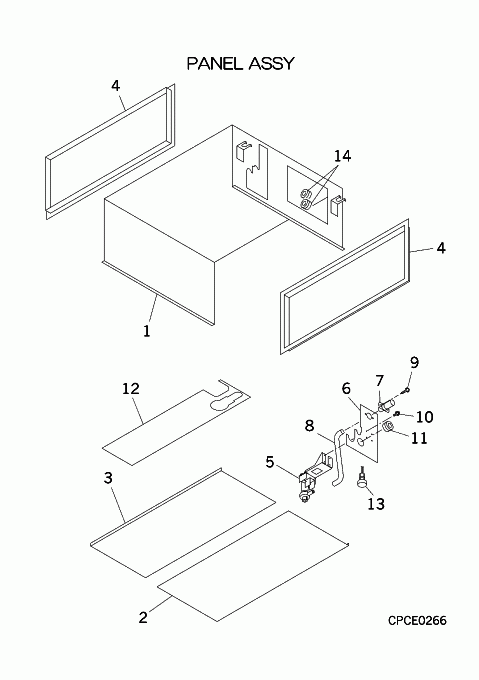

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJD124A012R

PANEL,TOP

Contact

[2] Contact

PJD119A170

PLATE ASSY,BOTT.(I

Contact

[3] Contact

PJD119A129B

PLATE ASSY,BOTTOM

Contact

[4] Contact

PJD438A033D

JOINT,DUCT

Contact

[5] In Stock

PJA451A510H

DRAIN PUMP

[5-10] In Stock

PJD451A001

PUMP DRAIN

[6] Out of Stock

PJD132A004

LID

[7] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[7-8] Out of Stock

PJD422C001

SOCKET ASSY, DRAIN

[8] In Stock

SSA423A092A

HOSE,DRAIN

Show Image

[9] Contact

W011D04X012

TAP-SCREW

Contact

Notes: 4X12, 1pc ONLY

[10] Contact

SSA913D013

TAP SCREW

Contact

Notes: 4X8, 1pc ONLY

[11] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[12] Contact

PJD141A034

PLATE ASSY

Contact

[13] In Stock

PJD536A004B

SWITCH FLOAT

Notes: FS Show Image

[14] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[15] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[16] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

SKU: FDU71KXE6 PANEL ASSY Category: Uncategorised
