FDU250V CONTROL AND PARTS SET

Name: FDU250V CONTROL AND PARTS SET
SKU: FDU250V CONTROL AND PARTS SET
Availability: InStock

FDU250V CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

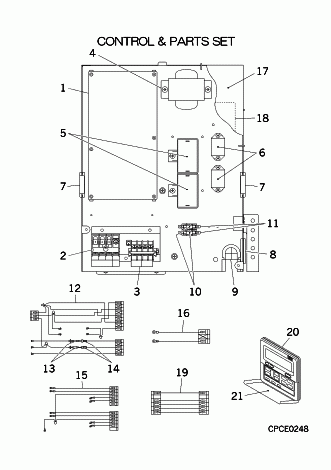

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A192WD

PWB ASSY

Notes: Indoor PCB Show Image

[1-16] Contact

PJD501A070DT

Contact

[2] In Stock

SSA561B702

BLOCK,TERMINAL

Notes: TB1 Show Image

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TRI, TR Show Image

[5] In Stock

SSA552A856C

CAPACITOR,RUNNING

Notes: CFI1,2 10MF 550VAC Show Image

[6] In Stock

SSA521F079

RELAY

Notes: 52FH,52FL, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image

[7] Contact

SSA947B027A

GROMMET

Contact

[8] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[9] Contact

SSA947B014A

GROMMET

Contact

[10] In Stock

SSA564A087H

FUSE

Notes: F1,2 6.3A, 6.3A Show Image

[11] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[12-14] Contact

PJD504A067A

WIRING(TB,POWER)

Contact

[13] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: F 3.15A, 3.15 AMP FUSE Show Image

[14] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[15] Contact

PJD504A072

WIRING(FM)

Contact

[16] Contact

PJB504A228C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y-CNB PWB, TB2 X,TB2 Y- CNB PWB

[17-18] Contact

PJD142A036B

LID ASSY(CONTROL)

Contact

[18] Contact

PJD011G026

LABEL,WIRING

Contact

[19] Contact

PJD504A002G

WIRING ASSY

Contact

Notes: CNF3-CNF5 FMI-2, CNF3- CNF5

[20-21] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E3, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[21] Contact

PJA129A708

COVER Z

Contact

[22] Contact

PJD011F049B

Contact
