FDU1800FKXZE1/F CONTROL AND PARTS SET

Name: FDU1800FKXZE1/F CONTROL AND PARTS SET
SKU: FDU1800FKXZE1/F CONTROL AND PARTS SET
Availability: InStock

FDU1800FKXZE1/F CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

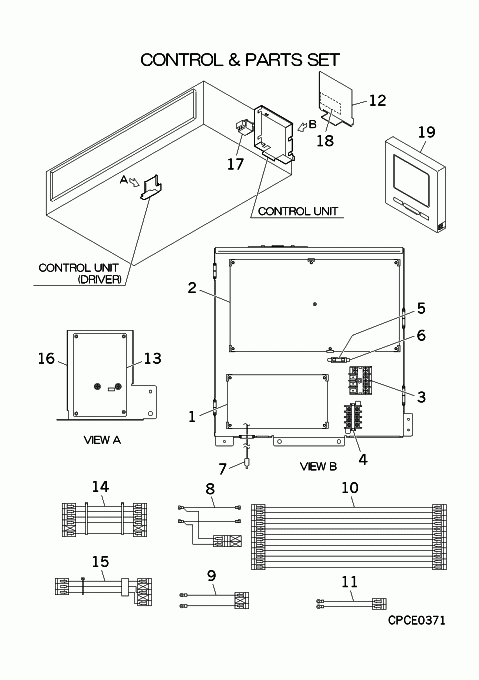

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A229PJ

PWB ASSY CONTROL

Notes: ONLY FOR SUPPLY PARTS, PWB1 - CONFIRM SERVICE CODE BEFORE ORDERING Show Image

[1-11] Contact

PJG501A014HS

CONTROL UNIT

Contact

Notes: !, NOT AVAILABLE

[2] In Stock

PJA505A248AB

PWB ASSY (POWER)

Notes: ONLY FOR SUPPLY PARTS Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

SSA564A149AL

FUSE(CURRENT)

Notes: F3 10A, F1 10A Show Image

[6] In Stock

SSA564B076

HOLDER,FUSE

Show Image

[7] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[8] Contact

PJG504A017A

HARNESS ASSY

Contact

Notes: TB1 L,TB1 N- FH,T2,CNU

[9] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[10] Contact

PJG504A001H

WIRING(PWB)

Contact

Notes: CNW2 PWB- CNW1 PWB

[11] Contact

PJF504A010J

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[12] Contact

PJG142A031

LID,CONTROL BOX

Contact

[13] In Stock

PJA505A251A

PWB ASSY(MOTOR)

Notes: ONLY FOR SUPPLY PARTS

[13-16] Contact

PJG501A015

CONTROL UNIT(DRIVE

Contact

Notes: !, NOT AVAILABLE

[14] Contact

PJG504A015

WIRING(CNM)

Contact

Notes: CNM1 PWB- CNM PWB

[15] Contact

PJG504A016

WIRING(FM)

Contact

Notes: CNFM2- CNFM PWB

[16] Contact

PJG142A034

LID ASSY(DRIVER)

Contact

[17] In Stock

SSA554B115

REACTOR

[18] Contact

PJG011G027

LABEL,WIRING

Contact

Notes: !

[19] Contact

PJZ502A031AC

Advanced Wired Remote

Contact

Substitute: RC-EXZ3A Notes: RC-EX3A, SALES ITEM - ECO TOUCH

[20] Contact

PJG011F072S

LABEL,MODEL NAME

Contact

Notes: !
