FDU1800FKXE6F/1 CONTROL AND PARTS SET

Name: FDU1800FKXE6F/1 CONTROL AND PARTS SET
SKU: FDU1800FKXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDU1800FKXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

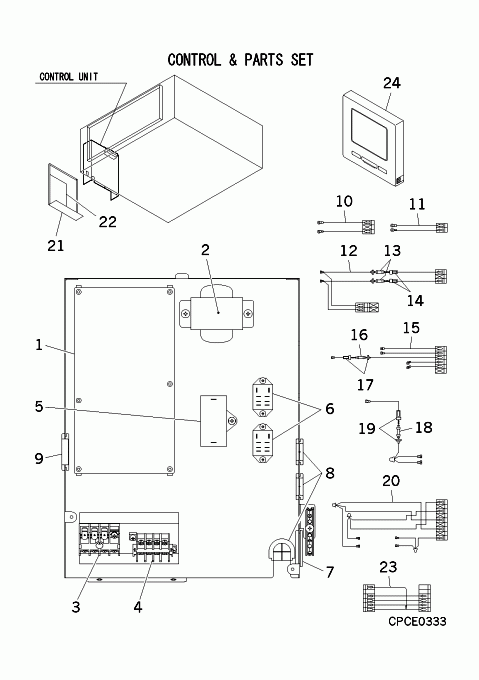

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A193VD

PWB ASSY

Show Image

[1-20] Contact

PJD501A083DT

Contact

[2] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] Contact

SSA552A864G

Contact

Notes: CFI 6MF 500VAC

[6] In Stock

SSA521F079

RELAY

Notes: 52FH,FL, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image

[7] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[8] Contact

SSA947B014A

GROMMET

Contact

[9] Contact

SSA947B027A

GROMMET

Contact

[10] Contact

PJB504A228C

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[11] Contact

PJB504A235A

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[12-14] Contact

PJD504A092

WIRING(TB,POWER)

Contact

Notes: TB L,TB N- CNWO PWB,CNU

[13] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[14] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[15-17] Contact

PJD504A093

WIRING(FM)

Contact

Notes: 52FL 5,52FH 5,TB N,CFI1- CNF2 FMI-1

[16] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[17] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[18] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[19] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[20] Contact

PJD504A095

WIRING(FM)

Contact

Notes: 52FL 7,52FH 7,52FL 8,52FH 8- CNM3 PWB

[21-22] Contact

PJD142A042C

LID ASSY,CONTROL B

Contact

[22] Contact

PJD011G041

LABEL,WIRING

Contact

[23] Contact

PJD504A006C

WIRING ASSY

Contact

Notes: CNF2- CNF3

[24] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[25] Contact

PJD011F069DT

Contact
