FDU112KXE6D/1 CONTROL AND PARTS SET

Name: FDU112KXE6D/1 CONTROL AND PARTS SET
SKU: FDU112KXE6D/1 CONTROL AND PARTS SET
Availability: InStock

FDU112KXE6D/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

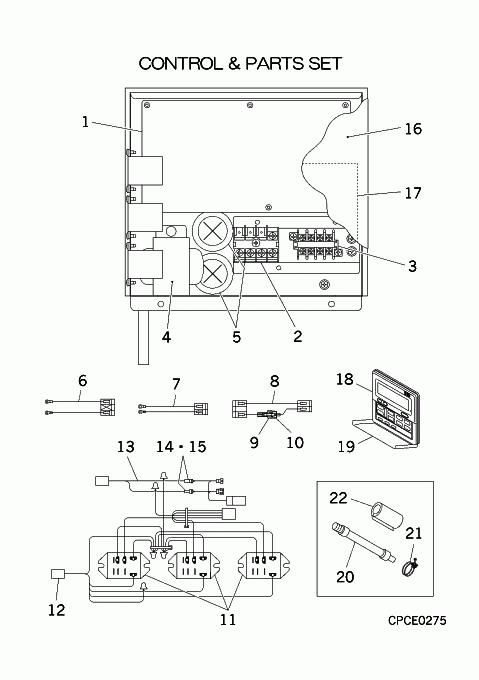

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A193ZD

PWB

Show Image

[1-15] Contact

PJD501A075GN

CONTROL UNIT

Contact

Notes: NOT AVAILABLE

[2] Out of Stock

SSA561B724A

BLOCK,TERMINAL

Substitute: SSA561B724C Notes: TB1

[3] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[4] In Stock

SSA554A487

TRANSFORMER

Notes: TR Show Image

[5] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[6] Contact

PJB504A228A

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB, TB2 X,TB2 Y-CNB PWB

[7] Contact

PJB504A235A

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[8-10] Contact

PJB504A238H

WIRING(DM)

Contact

Substitute: PJB504A238A Notes: CNR PWB- CNR2 DM, CNR PWB-CNR2 DM

[9] In Stock

SSA564A139

FUSE(CURRENT)

Notes: 0.16A, F 0.16A Show Image

[10] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[11] In Stock

SSA521F079

RELAY

Notes: 52FL,52FM,52FH, SOLD INDIVIDUALLY - SOME UNITS HAVE MULTIPLE Show Image

[11-15] In Stock

PJD521A001C

RELAY ASSY

Show Image

[12] Contact

PJD504A085

WIRING(FM)

Contact

Notes: 52FL 7,52FM 7,52FH 7,52FL 8,52FM 8,52FH 8- CNM3 PWB, 52FL 7,52FM 7,52FH 7,52FL 8,52FM 8,52FH 8 - CNM3 PWB

[13-15] Contact

PJD504A089A

WIRING(TB,POWER)

Contact

[14] In Stock

SSA564A116G

FUSE(CURRENT)

Notes: 3.15A, 3.15 AMP FUSE Show Image

[15] In Stock

RWC564B002

HOLDER,FUSE

Show Image

[16-17] Contact

PJD142A047C

LID ASSY,CONTROL B

Contact

Notes: OUT OF PRODUCTION

[17] Contact

PJD011G040

LABEL,WIRING

Contact

[18-19] Contact

PJA502A800BC

CONTROL ASSY,REMOTE

Contact

Substitute: RC-E5 Notes: RC-E4, "RC-E5" SALES ITEM, REPLACES RC-E3 AND RC-E4

[19] Contact

PJA129A708

COVER Z

Contact

[20] In Stock

SSA423A101

HOSE,DRAIN

Show Image

[20-22] In Stock

PJA006A317L

INSTALLATION KIT

[21] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[22] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[23] Contact

PJD011F057L

LABEL,MODEL NAME

Contact
