FDU1008-A HEAT EXCH. AND FAN

Name: FDU1008-A HEAT EXCH. AND FAN
SKU: FDU1008-A HEAT EXCH. AND FAN
Availability: InStock

FDU1008-A HEAT EXCH. AND FAN

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

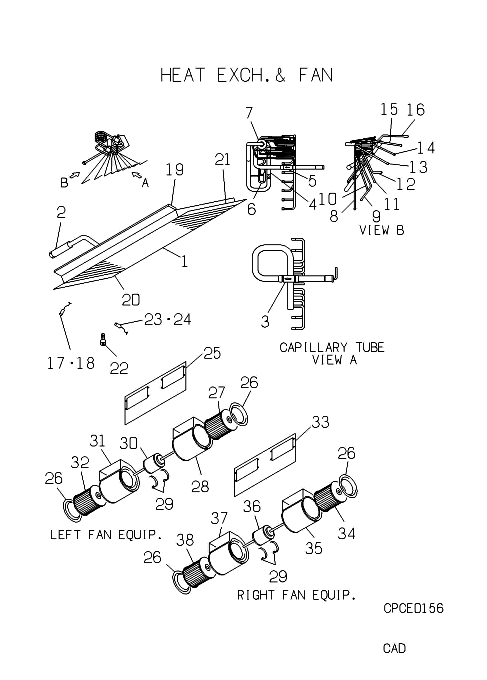

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJD311A001K

HEAT EXCH

[1-20] Contact

PJD301A016AJ

HEAT EXCH

Contact

[2-3] Contact

PJD315D025A

HEADER FDU

Contact

[3] Contact

SSA357A002F

STRAINER

Contact

[4] Contact

SSA385A015B

VALVE CHECK

Contact

Notes: !D3.0XD4.0 L150

[4-6] Contact

PJD357A004A

STRAINER J

Contact

[5] Contact

SSA357A005G

STRAINER

Contact

[6] Contact

PJD315B117A

CAPILLARY A

Contact

Notes: !D3.0XD4.0 L400

[7] Contact

SSA315A206J

DISTRIBUTOR

Contact

[7-16] Contact

PJD315A028A

DISTRI

Contact

[8] Contact

PJD315B118A

CAPILLARY A

Contact

Notes: !D3.0XD4.0 L400

[9] Contact

PJD315B147

CAPILLARY A

Contact

Notes: !D3.0XD4.0 L500

[10] Contact

PJD315B120A

CAPILLARY A

Contact

Notes: !D2.8XD4.0 L400

[11] Contact

PJD315B121A

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[12] Contact

PJD315B148

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[13] Contact

PJD315B123A

CAPILLARY A

Contact

Notes: !D2.2XD4.0 L400

[14] Contact

PJD315B124A

CAPILLARY A

Contact

Notes: !D2.0XD4.0 L400

[15] Contact

PJD315B125A

CAPILLARY A

Contact

Notes: !D2.2XD4.0 L400

[16] Contact

PJD315B126A

CAPILLARY A

Contact

Notes: !D2.6XD4.0 L400

[17] In Stock

PJD551A002B

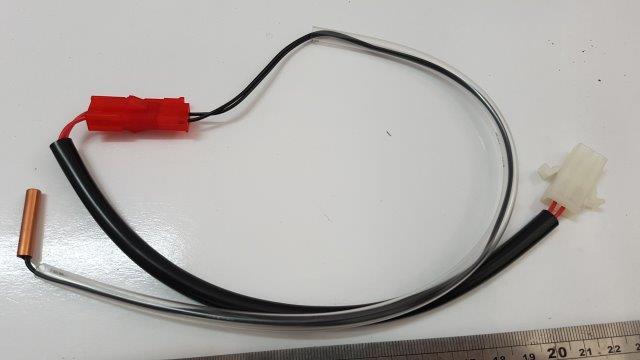

SENSOR

Notes: THI-R, COMES WITH EXTENSION CABLE Show Image

[18] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[19] Contact

PJD141A002B

PLATE BAFF

Contact

[20] Contact

PJD141A007

PLATE BAFF

Contact

Notes: LEFT

[21] Contact

PJD141A008

PLATE BAFF

Contact

Notes: RIGHT

[22] In Stock

PJD536A002A

SWITCH,FLOT

Show Image

[23] Out of Stock

PJA551A010

SENSOR ASSY

Notes: THI-A Show Image

[24] Contact

SSA937C290

CLIP

Contact

Notes: FOR THI-A

[25] In Stock

PJD116A014A

BRAKET FAN

[26] In Stock

PDD433A003

SHROUD

[27] In Stock

SSA431C020B

IMPELLER

[28] Out of Stock

PJD433A001B

CASING

[29] In Stock

PFA116A108

BRACKET

Show Image

[30] In Stock

SSA511A365V

MOTOR AC

Notes: LEFT FAN EQUIP., LOOKING AT SUPPLY SIDE OF UNIT - LEFT SIDE MOTOR

[31] In Stock

PJD433A001C

CASING

[32] In Stock

SSA431C020C

IMPELLER

[33] In Stock

PJD116A014

FAN BRACKET

Notes: RIGHT FAN EQUIP.

[34] In Stock

SSA431C005A

IMPELLER

[35] In Stock

PJD433A001

CASING

[36] In Stock

SSA511A364V

MOTOR AC

Notes: RIGHT FAN EQUIP., RIGHT SIDE MOTOR - LOOKING AT SUPPLY SIDE OF UNIT

[37] In Stock

PJD433A001A

CASING

Show Image

[38] In Stock

SSA431C005

IMPELLER
