FDTW28KXE6F/F PANEL ASSY

Name: FDTW28KXE6F/F PANEL ASSY
SKU: FDTW28KXE6F/F PANEL ASSY
Availability: InStock

FDTW28KXE6F/F PANEL ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

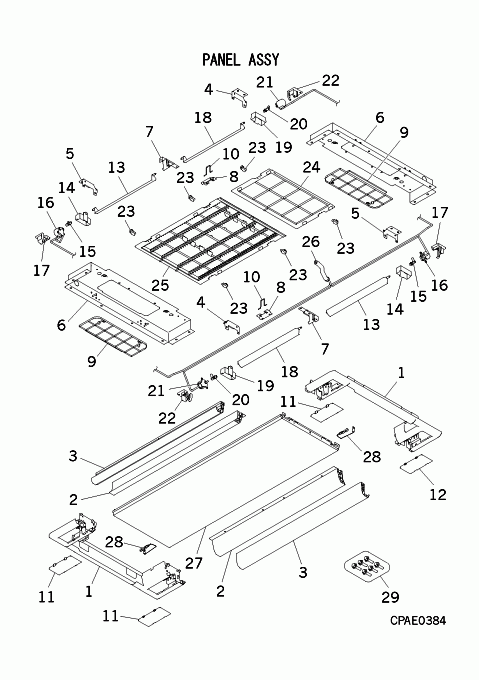

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJB122A308

PANEL,FRONT

Contact

[1-26] Contact

PJB122A304D

PANEL ASSY,FRONT

Contact

[1-29] Contact

PJB122A300AB

PANEL ASSY,FRONT

Contact

Notes: !TW-PSA-26W-E/F

[2] Contact

PJB133A208

LACE ASSY(IN)

Contact

[3] Contact

PJB133A207

LACE(OUT)

Contact

[4] Contact

PJB116A325

BRACKET,LACE

Contact

[5] Contact

PJB116A325A

BRACKET,LACE

Contact

[6] Contact

PJB116A323A

BRACKET ASSY,SIDE

Contact

[7] Contact

PJB116A326

BRACKET ASSY,CENTE

Contact

[8] Contact

PJB116A327

BRACKET,WIRE

Contact

[9] Contact

PJB132A308

LID ASSY,PANEL

Contact

[10] Contact

PJF962C001A

WIRE

Contact

[11] Contact

PJB132A301

LID,CORNER

Contact

[12] Contact

PJB132A309A

LID,CORNER

Contact

[13] Contact

PJB436A300A

LOUVER,BLOW

Contact

[13-17] Contact

PJB436A302

LOUVER ASSY,BLOW

Contact

[14] Contact

PJB129A302

CLAMP

Contact

[15] Contact

PJA144A750A

CRANK(A)

Contact

[16] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[16-17] In Stock

PJF512T001

MOTOR ASSY

Show Image

[17] Contact

PJF129A003

SUPPORT(MOTOR)

Contact

[18] Contact

PJB436A300A

LOUVER,BLOW

Contact

[18-22] Contact

PJB436A302A

LOUVER ASSY,BLOW

Contact

[19] Contact

PJB129A302

CLAMP

Contact

[20] Contact

PJA144A750A

CRANK(A)

Contact

[21] In Stock

SSA512T017

MOTOR,STEPPING

Notes: VERTICAL LOUVER MOTOR LEFT/RGHT AIR FLOW Show Image

[21-22] In Stock

PJF512T001A

MOTOR ASSY

Show Image

[22] Contact

PJF129A003A

SUPPORT(MOTOR)

Contact

[23] In Stock

PJB129A303

STOPPER,F

Show Image

[24] Contact

PJB437A300B

FILTER,AIR

Contact

Notes: W237.3XD408( 7)

[25] Contact

PJB437A301B

FILTER,AIR

Contact

Notes: W532XD408( 19)

[26] Contact

PJB504A300B

WIRING ASSY

Contact

Notes: LM1,LM2,LM3,LM4- CNJ2

[27] Contact

PJB122A311

PANEL ASSY(S)

Contact

[28] Contact

PJB937G300

STRAP

Contact

[29] Contact

PJB008A300

PARTS SET

Contact
