FDTW28KXE6F/1 CONTROL AND PARTS SET

Name: FDTW28KXE6F/1 CONTROL AND PARTS SET
SKU: FDTW28KXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDTW28KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

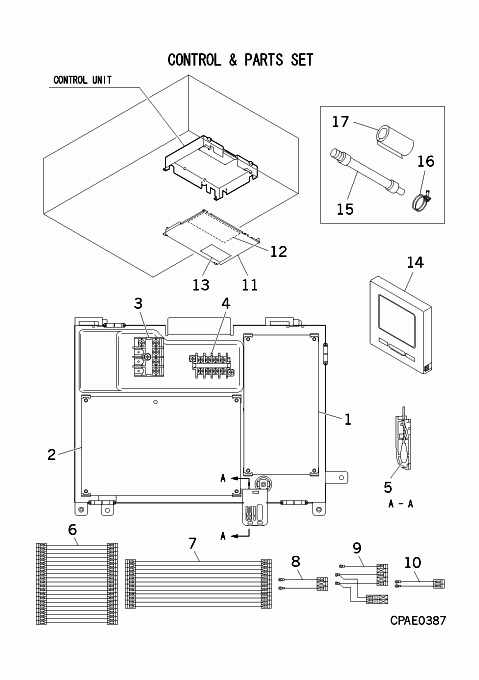

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A229BA

PWB ASSY CO

Show Image

[1-10] Contact

PJB501A302BB

Contact

[2] In Stock

PJA505A331BD

PWB ASSY

Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

PSA551A008AB

SENSOR

Notes: THI-A, THI-A RETURN AIR. OTHER SENSORS MAY BE IN HEAT EXCH. ASSY SECTOR Show Image

[6] In Stock

PJF504A001B

WIRING(LM)

Notes: CNJ2- CNJ PWB Show Image

[7] In Stock

PJG504A001

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1

[8] In Stock

PJF504A006K

WIRING(TB,XY)

Notes: TB2 X,TB2 Y- CNB PWB Show Image

[9] Contact

PJG504A007A

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU

[10] Contact

PJF504A010H

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[11] Contact

PJB142A303

LID,CONTROL BOX

Contact

[12] Contact

PJB011G302B

LABEL,WIRING

Contact

[13] Contact

PSA011H032

LABEL,NOTICE

Contact

[14] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[15] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE C: CONTROL & PARTS SET

[15-17] Contact

PJF008A001M

PARTS SET

Contact

[16] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[17] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[18] Contact

PJB011F303B

Contact

SKU: FDTW28KXE6F/1 CONTROL AND PARTS SET Category: Uncategorised
