FDTSJ45HKXE2 FAN ASSY AND CABINET

Name: FDTSJ45HKXE2 FAN ASSY AND CABINET
SKU: FDTSJ45HKXE2 FAN ASSY AND CABINET
Availability: InStock

FDTSJ45HKXE2 FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

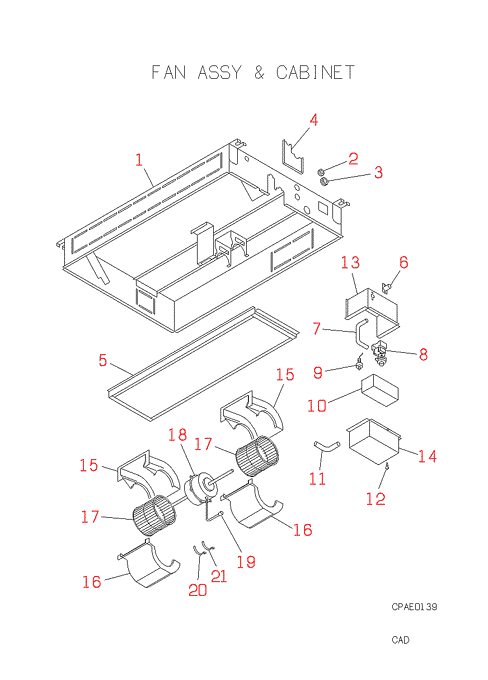

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-3] Contact

PJC100A001D

CABINET ASY

Contact

[2] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[3] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[4] Contact

PJC132A006

LID

Contact

[5] Contact

PJC101A001

FRAME ASSY

Contact

[6] In Stock

SSA422C078A

SOCKET

[6-14] Contact

PJC451A003A

PUMP ASSY,DRAIN

Contact

[7] In Stock

SSA423A079

HOSE DRAIN

Show Image

[8] Contact

PJA451A308D

PUMP ASSY

Contact

[9] In Stock

SSA536A017C

SWITCH,FLOAT

Notes: FS Show Image

[10] In Stock

PJC454A004

PAN,DRAIN

Show Image

[11] Contact

SSA423A050

HOSE DRAIN

Contact

[12] Contact

SSA913D006

SCREW

Contact

Notes: 4X8, 1pc ONLY

[13] Contact

PJC142A002

BOX PUMP

Contact

Notes: UPPER

[14] Contact

PJC142A003

BOX PUMP

Contact

[15] Contact

PFA433B200

CASING

Contact

[16] Contact

PFA433B201

CASING

Contact

[17] In Stock

SSA431D031A

IMPELLER

Show Image

[19] Contact

SSA552A143A

CAPACITOR

Contact

Notes: 2MF 400VAC

[20] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: RIGHT, LEFT Show Image

[21] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: LEFT Show Image

[22] In Stock

PSA006A039

HOSE SET, DRAIN
