FDTS71KXE6F/1 HEAT EXCH. ASSY

Name: FDTS71KXE6F/1 HEAT EXCH. ASSY
SKU: FDTS71KXE6F/1 HEAT EXCH. ASSY
Availability: InStock

FDTS71KXE6F/1 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

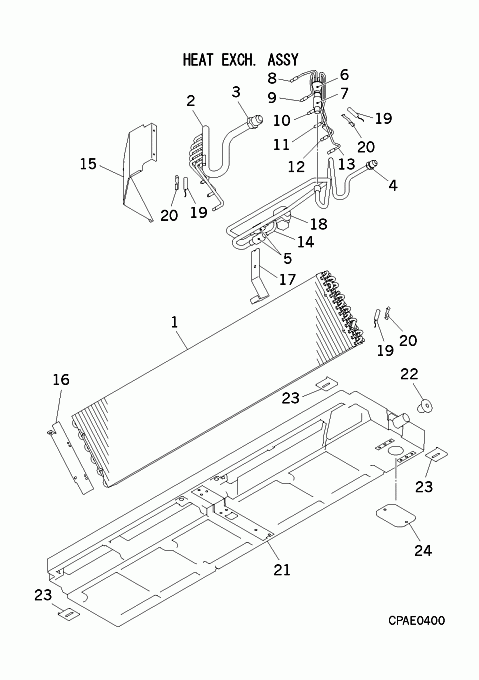

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJH311A004

HEAT EXCH(AIR)

Contact

[1-20] Out of Stock

PJH301A004

HEAT EXCH ASSY

[2-3] Contact

PJH315D005B

HEADER ASSY,GAS

Contact

[3] Contact

SSA323F012C

UNION,SOLDER

Contact

[4] In Stock

SSA323F088

UNION(SLD)

Notes: LENGTH 2.6CM Show Image

[5] In Stock

SSA357A051B

STRAINER

Show Image

[6] Contact

SSA315A306D

DISTRIBUTOR

Contact

[6-13] Contact

PJH315A003

DISTRIBUTOR ASSY

Contact

[7] In Stock

SSA357A051

STRAINER

Show Image

[8] Contact

PJH315B003

CAPILLARY

Contact

Notes: !D2.6XD4.0 L100

[9] Contact

PJH315B003A

CAPILLARY

Contact

Notes: !D2.0XD4.0 L120

[10] Contact

PJH315B003B

CAPILLARY

Contact

Notes: !D2.4XD4.0 L140

[11] Contact

PJH315B003C

CAPILLARY

Contact

Notes: !D3.0XD4.0 L180

[12] Contact

PJH315B003D

CAPILLARY

Contact

Notes: !D3.0XD4.0 L220

[13] Contact

PJH315B003F

CAPILLARY

Contact

Notes: !D1.6XD4.0 L280

[14] Out of Stock

SSA387F047

VALVE EXP

Notes: SM, EEV - VALVE BODY Show Image

[15] Contact

PJH141A009

PLATE ASSY,BAFFLE(

Contact

[16] Contact

PJH141A008

PLATE,BAFFLE(L)

Contact

[17] Contact

PJH116A012A

BRACKET(EEV)

Contact

[18] In Stock

SSA382F228BH

COIL,SOLENOID

Notes: FOR SM, LENGTH 70CM Show Image

[19] In Stock

PJF551A002H

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3, LENGTH 68.5CM Show Image

[20] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[21-22] Contact

PJH454A003

PAN ASSY,DRAIN

Contact

[22] In Stock

SSA326A049

PLUG

Show Image

[23] In Stock

PJG116A009

BRACKET

Show Image

[24] Contact

PJG142A006A

LID ASSY(DRAIN)

Contact
