FDTS45KXE6F/F FAN ASSY AND CABINET

Name: FDTS45KXE6F/F FAN ASSY AND CABINET
SKU: FDTS45KXE6F/F FAN ASSY AND CABINET
Availability: InStock

FDTS45KXE6F/F FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

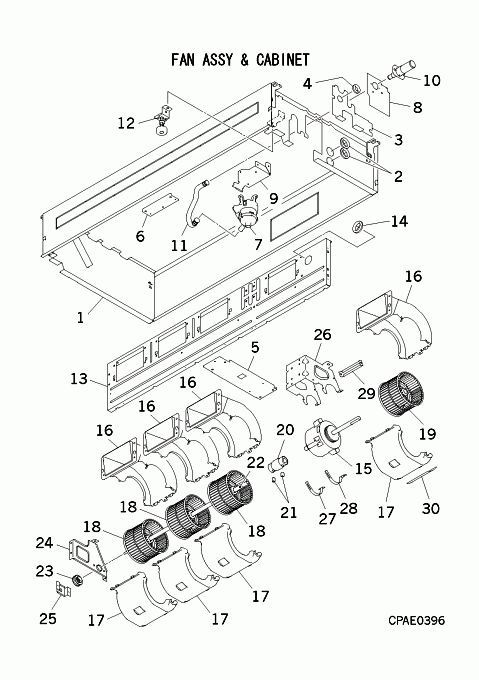

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PJC100A300A

CABINET ASSY

Contact

Notes: !

[2] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[3-4] Contact

PJH132A005A

LID ASSY

Contact

[4] Contact

S751W20

GROMMET 5K1

Contact

Notes: D25

[5] Contact

PJC119A303

PLATE ASSY(F_PANEL

Contact

[6] Contact

PJC119A302

PLATE ASSY(F_PANEL

Contact

[7] In Stock

SSA451A012C

PUMP,DRAIN

Show Image

[7-11] Contact

PJH451A003A

PUMP ASSY,DRAIN

Contact

[8] Contact

PJH132A004

LID,PUMP

Contact

[9] Contact

PJH116A011

BRACKET(PUMP)

Contact

[10] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[11] In Stock

SSA423A100

HOSE,DRAIN

[12] Contact

PJG536A001A

SWITCH ASSY,FLOAT

Contact

Notes: FS

[13-14] Contact

PJH141A005B

PLATE ASSY,BAFFLE

Contact

Substitute: PJH141A005C

[14] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[15] In Stock

SSA512T125C

MOTOR DC

[16] In Stock

PJH433B001

CASING(U)

[17] In Stock

PJH433B003

CASING ASSY(L)

[18] In Stock

SSA431D095A

FAN

Notes: LEFT

[19] In Stock

SSA431D096A

IMPELLER

Notes: RIGHT Show Image

[20-21] In Stock

PJH272A001

COUPLING

[21] Contact

SSA912F015

SET,SCREW(SCH-CP)

Contact

Notes: 1pc ONLY

[22] Contact

PJH271A002

SHAFT

Contact

Substitute: PJH271A002B

[23] In Stock

SSA923C136

BEARING, PLANE

Notes: END BEARING Show Image

[24] Contact

PJH116A005

BRACKET(B_B)

Contact

[25] In Stock

PJH116A006

BRACKET (BEARING)

[26] In Stock

PJH116A003

BRACKET MOTOR

[27] In Stock

PJG116A063

BRACKET(MOTOR)

Notes: LEFT Show Image

[28] In Stock

PFA116A207H

BRACKET

Notes: RIGHT Show Image

[29] In Stock

PJG119A002

PLATE

[30] Contact

PSA011H046

LABEL,NOTICE

Contact

[31] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE D: CONTROL & PARTS SET, SEE C: CONTROL & PARTS SET

[32] In Stock

V300Y42

HOSE CLAMP

Notes: SEE D: CONTROL & PARTS SET
