FDTS45KXE6F/1 CONTROL AND PARTS SET

Name: FDTS45KXE6F/1 CONTROL AND PARTS SET
SKU: FDTS45KXE6F/1 CONTROL AND PARTS SET
Availability: InStock

FDTS45KXE6F/1 CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

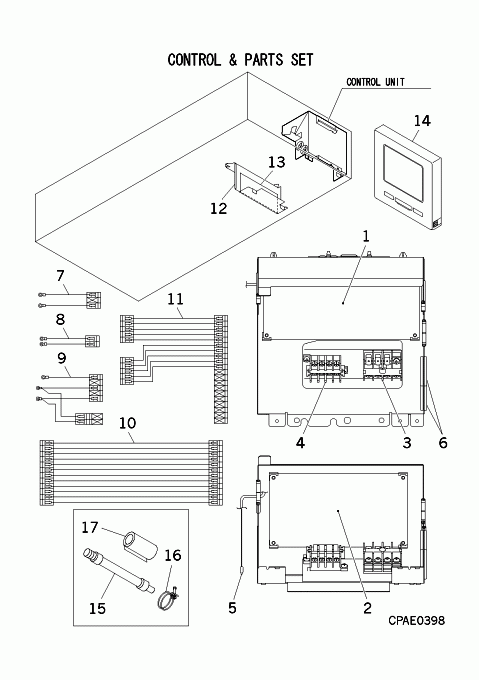

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] In Stock

PJA505A230R

PWB ASSY(POWER)

[1-11] Contact

PJC501A301BF

CONTROL UNIT

Contact

Notes: Not suitable for this model

[2] In Stock

PJA505A229FA

PWB ASSY CO

Show Image

[3] In Stock

SSA561B702C

BLOCK,TERMINAL

Notes: TB1

[4] In Stock

SSA561B720A

BLOCK,TERMINAL

Notes: TB2 Show Image

[5] In Stock

PSA551A001CG

SENSOR ASSY

Notes: THI-A Show Image

[6] In Stock

S751W25X

GROMMET

Notes: D30 Show Image

[7] Contact

PJF504A006L

WIRING(TB,XY)

Contact

Notes: TB2 X,TB2 Y- CNB PWB

[8] Contact

PJF504A010J

WIRING(TB,AB)

Contact

Notes: TB2 A,TB2 B- CNK1 PWB

[9] Contact

PJG504A007B

WIRING(TB,POWER)

Contact

Notes: CONT E,TB1 1,TB1 2- CNWO PWB,CNU

[10] In Stock

PJG504A001

WIRING(PWB)

Notes: CNW2 PWB- CNW1 PWB, CNW2- CNW1

[11] Contact

PJC504A301

WIRING(LM)

Contact

Notes: CNJ3,CNJ2- CNJ

[12] Contact

PJH142A010

LID,CONTROL BOX

Contact

[13] Contact

PJC011G302

LABEL,WIRING

Contact

Notes: Not suitable for this model

[14] Contact

PJZ502A024AB

Advanced Wired Remote

Contact

Notes: RC-EX1A, SALES ITEM - ECO TOUCH

[15] In Stock

SSA423A101A

HOSE,DRAIN

Notes: SEE C: CONTROL & PARTS SET

[15-17] Contact

PJF008A001AA

PARTS SET

Contact

[16] In Stock

V300Y38

CLAMP

Notes: CLAMP Show Image

[17] In Stock

SSA153B016BA

INSULATION,PIPE

Show Image

[18] Contact

PJC011F302D

LABEL,MODEL NAME

Contact

Notes: Not suitable for this model
