FDTQ36KXE6F/1 HEAT EXCH. ASSY

Name: FDTQ36KXE6F/1 HEAT EXCH. ASSY
SKU: FDTQ36KXE6F/1 HEAT EXCH. ASSY
Availability: InStock

FDTQ36KXE6F/1 HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

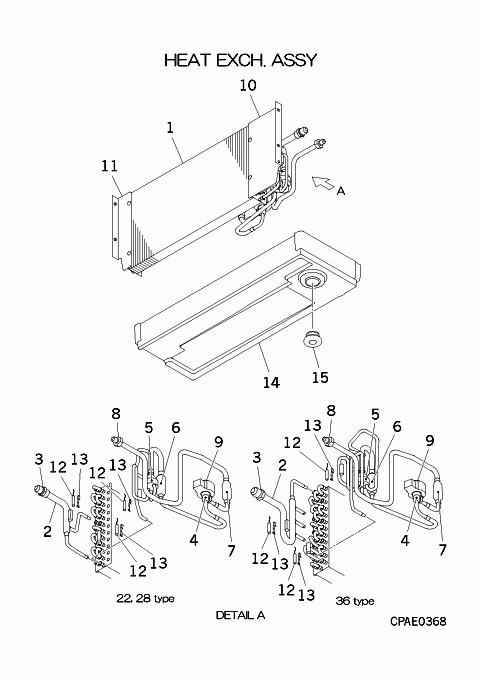

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1] Contact

PJC311A120

HEAT EXCH(AIR)

Contact

[1-14] Contact

PJC301A115

HEAT EXCH ASSY(AIR

Contact

[2-3] Contact

PJC315D134

HEADER ASSY,GAS

Contact

[3] In Stock

SSA323F012B

UNION

Show Image

[4] In Stock

SSA387F047B

EXP VALVE

Notes: SM, EXPANSION VALVE BODY Show Image

[5] Contact

SSA315A255A

DISTRIBUTOR

Contact

[5-6] Contact

PJC315A122

DISTRIBUTOR ASSY

Contact

[6] In Stock

SSA357A059T

STRAINER

[7] In Stock

SSA357A059B

STRAINER

[7-8] Contact

PJC321A142B

PIPING ASSY

Contact

[8] Contact

SSA323F075

UNION

Contact

[9] In Stock

SSA382F228AT

COIL,SOLENOID

Notes: FOR SM, FOR SM/ LENGTH 51.5CM Show Image

[10] Contact

PJC141A122

PLATE ASSY,BAFFLE(

Contact

[11] Contact

PJC141A124

PLATE ASSY,BAFFLE(

Contact

[12] In Stock

PJF551A002F

SENSOR ASSY(TEMP)

Notes: THI-R1,2,3, THI-R1,2,3/ LENGTH 66CM Show Image

[13] In Stock

RKJ941F001

SPRING LEAF

Notes: FOR THI-R Show Image

[14-15] In Stock

PJC454A114

PAN ASSY,DRAIN

[15] In Stock

SSA326A048

PLUG

Show Image

SKU: FDTQ36KXE6F/1 HEAT EXCH. ASSY Category: Uncategorised
