FDTQ22KXE6 FAN ASSY AND CABINET

Name: FDTQ22KXE6 FAN ASSY AND CABINET
SKU: FDTQ22KXE6 FAN ASSY AND CABINET
Availability: InStock

FDTQ22KXE6 FAN ASSY AND CABINET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

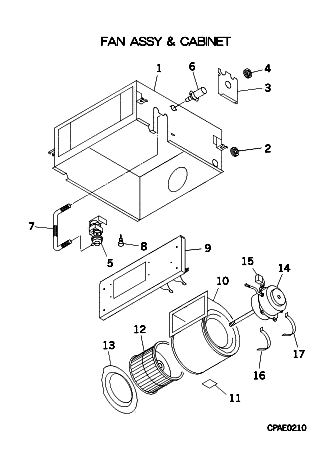

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-2] Contact

PJC100A100J

CABINET ASSY

Contact

[2] In Stock

S751W30X

GROMMET V14

Notes: D35 Show Image

[3-4] Contact

PJC132A103

LID

Contact

[4] In Stock

S751W30

GROMMET

Notes: D35 Show Image

[5] In Stock

PJA451A510D

DRAIN PUMP

Notes: DM

[6] In Stock

SSA422C088

SOCKET

Notes: LENGTH 11.5CM Show Image

[6-7] In Stock

PJC422C100

SOCKET ASSY

Show Image

[7] In Stock

SSA423A092A

HOSE,DRAIN

Show Image

[8] In Stock

PJC536A100A

SWITCH ASSY,FLOAT

Notes: FS, LENGTH 94.5CM Show Image

[9] Contact

PJC116A104

CABINET FAN

Contact

[10-11] In Stock

PJC433B100A

CASING

[11] Contact

RSA011H005A

LABEL,NOTIC

Contact

[12] In Stock

SSA431D020A

IMPELLER

[13] In Stock

PFA433B003

SHROUD

[14] In Stock

SSA511T165

MOTOR AC

[15] In Stock

SSA552A497D

CAPACITOR,RUNNING

Notes: CFI 1.6MF 460VAC, 1.6MF 400V Show Image

[16] In Stock

PFA116A207B

BRACKET, MOTOR

Notes: LEFT Show Image

[17] In Stock

PFA116A207C

BRACKET, MOTOR

Notes: RIGHT Show Image

[18] In Stock

SSA423A101

HOSE,DRAIN

Notes: ACCESSORIES Show Image

[19] In Stock

V300Y38

CLAMP

Notes: ACCESSORIES, CLAMP Show Image

SKU: FDTQ22KXE6 FAN ASSY AND CABINET Category: Uncategorised
