FDTN506CES HEAT EXCH. ASSY

Name: FDTN506CES HEAT EXCH. ASSY
SKU: FDTN506CES HEAT EXCH. ASSY
Availability: InStock

FDTN506CES HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

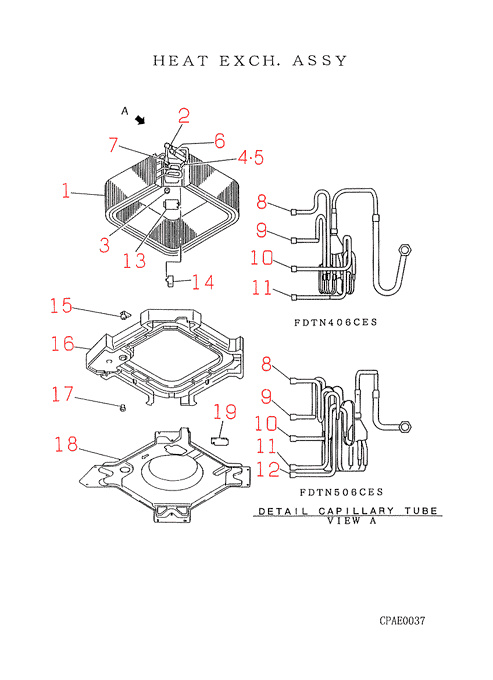

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-12] Contact

PJA311A325F

HEAT EXCHANGER,AIR

Contact

[2] Contact

SSA323F012D

UNION

Contact

[3] In Stock

S751W25X

GROMMET

Show Image

[4] Out of Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[5] In Stock

RKJ941F001

SPRING LEAF

Show Image

[6] Contact

SSA323F075A

UNION

Contact

[7-12] Contact

PJA315A332A

DISTRIBUTOR ASSY

Contact

Notes: INCL.INNER STRAINER

[8] Contact

PJA315B606

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D2.6XD4.0 L400

[9] Contact

PJA315B607

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D2.4XD4.0 L400

[10] Contact

PJA315B608

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D3.5XD5.0 L100

[11] Contact

PJA315B609

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D2.0XD4.0 L200

[12] Contact

PJA315B610

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.8XD3.2 L500

[13] Contact

PJA129A319

COVER

Contact

[14] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFI, CFO1,2

[15] In Stock

PJA536A302

SWITCH FLOAT

Notes: FS, LENGTH 47.3CM Show Image

[16-17] In Stock

PJA454A300

PAN DRAIN

[17] Contact

SSA326A022

PLUG

Contact

[18] Contact

PJA433A300

BELLMOUTH

Contact

[19] Contact

PJA142A303

COVER

Contact

SKU: FDTN506CES HEAT EXCH. ASSY Category: Uncategorised
