FDTN505HES HEAT EXCH. ASSY

Name: FDTN505HES HEAT EXCH. ASSY
SKU: FDTN505HES HEAT EXCH. ASSY
Availability: InStock

FDTN505HES HEAT EXCH. ASSY

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

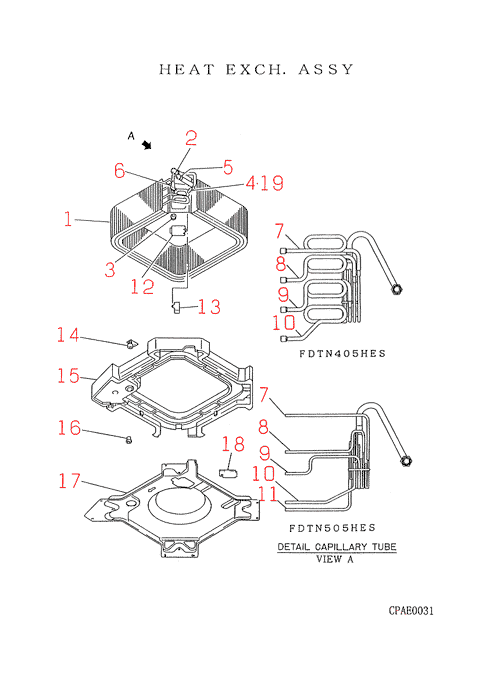

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-12] Contact

PJA311A312A

HEAT EXCH

Contact

[2] Contact

SSA323F012D

UNION

Contact

[3] In Stock

S751W25X

GROMMET

Show Image

[4] Out of Stock

PJA551A005

SENSOR

Notes: THI-R Show Image

[5-11] Contact

PJA315A312A

DISTRIBUTOR

Contact

Notes: INCL.INNER STRAINER

[6] Contact

SSA323F012A

UNION

Contact

[7] Contact

PJA315B419

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.4XD2.5 L300

[8] Contact

PJA315B420

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.3XD2.5 L250

[9] Contact

PJA315B421

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.4XD2.5 L240

[10] Contact

PJA315B422

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.2XD2.5 L250

[11] Contact

PJA315B423

CAPILLARY ASSY

Contact

Notes: INCL.TUBE D1.2XD2.5 L550

[12] Contact

PJA129A319

COVER

Contact

[13] Out of Stock

SSA552A862H

CAPACITOR

Substitute: OUT OF PRODUCTION Notes: CFO1,2

[14] In Stock

PJA536A302

SWITCH FLOAT

Notes: LENGTH 47.3CM Show Image

[15-16] In Stock

PJA454A300

PAN DRAIN

[16] Contact

SSA326A022

PLUG

Contact

[17] Contact

PJA433A300

BELLMOUTH

Contact

[18] Contact

PJA142A303

COVER

Contact

[19] In Stock

RKJ941F001

SPRING LEAF

Show Image
