FDTN505HES CONTROL AND PARTS SET

Name: FDTN505HES CONTROL AND PARTS SET
SKU: FDTN505HES CONTROL AND PARTS SET
Availability: InStock

FDTN505HES CONTROL AND PARTS SET

Parts List

Key:

Instock.

Nilstock.

Contact MRE.

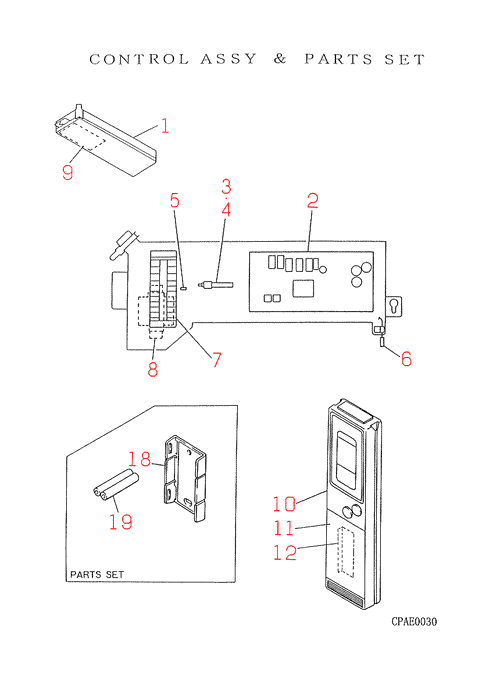

Check the parts position number [ ] matching with the drawing. Login to view prices.

[1-8] Contact

PJA501A300V

CONTROL ASSY

Contact

Notes: !

[2] In Stock

PJA505A023AP

PWB ASSY

[3] In Stock

E200Y05C

FUSE AS85

Show Image

[4] In Stock

SSA564B004

HOLDER,FUSE

Show Image

[5] Contact

PJA553A001B

RESISTOR

Contact

Substitute: PJA553A001 Notes: R

[6] Out of Stock

PJA551A010

SENSOR ASSY

Notes: THI-A Show Image

[7] Contact

SSA561B210

BLOCK,TERMINAL

Contact

Substitute: SSA561B212DG

[8] In Stock

SSA554A274C

TRANSFORMER

Notes: TRI Show Image

[9] Contact

PSB011G792

LABEL,WIRING

Contact

[10-12] Out of Stock

PFA502A201F

REMOCON

Substitute: PFA502A204F

[11] Contact

RKH142A021V

COVER,REMOCON

Contact

[12] Contact

RKH142A006F

COVER,BATTERY

Contact

[16] Contact

PJA008A300J

PARTS SET

Contact

Notes: !INCL.CLAMP,HOSE INSULATION SET

[17-19] Contact

PFA006A203

PARTS SET(REMOCON)

Contact

Notes: !

[18] Contact

RKH032A001

HOLDER

Contact

[19] Contact

RKH549A500

BATTERY

Contact

[20] Contact

PSA012B152

MANUAL,INSTRUCTION

Contact

Notes: !

[21] Contact

PJA032A303A

BOARD

Contact

Notes: !PATTERN SHEET
